●DC SPD Surge protective device

●Protect sensitive electronic equipment

●Short-current interription overload protection

●Provide common and different modes protection

●Against lightning surge voltages in solar system

Product Description

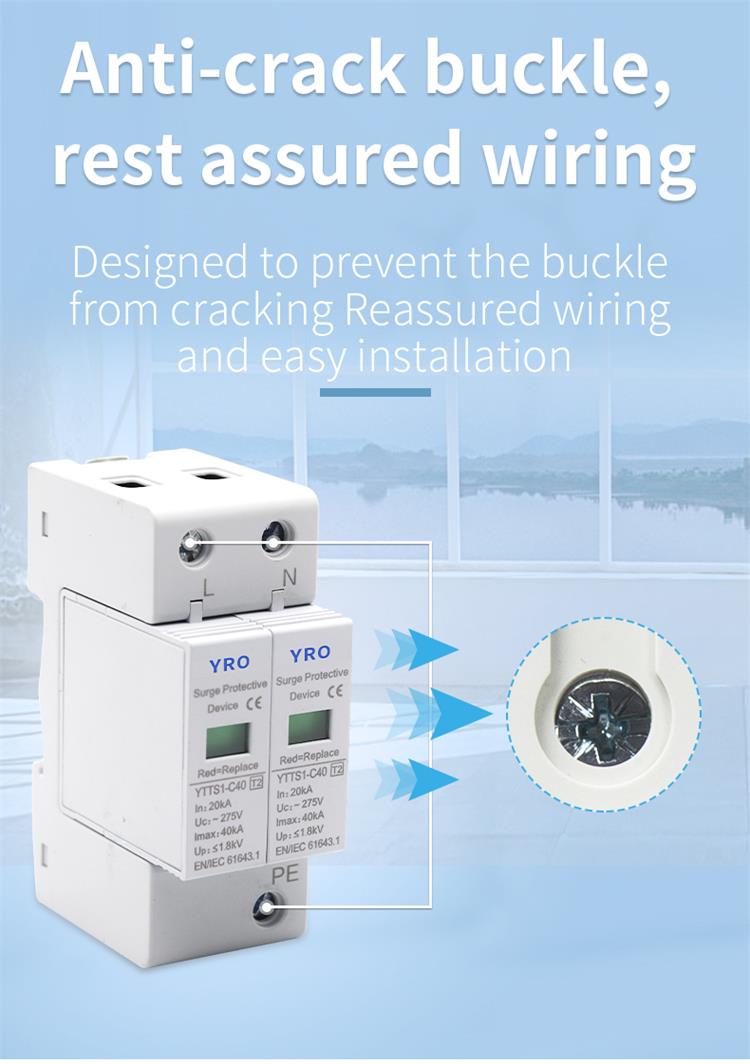

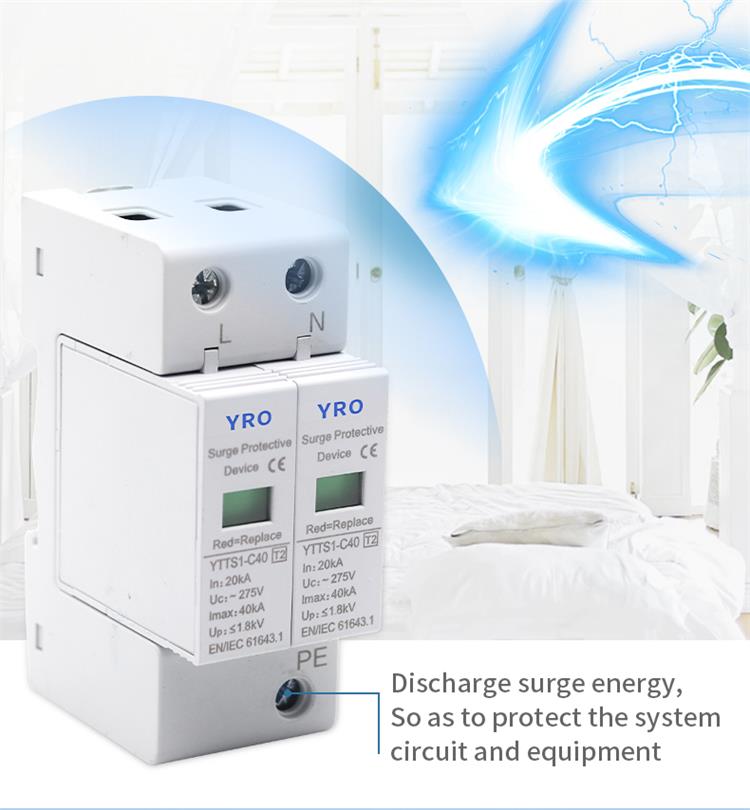

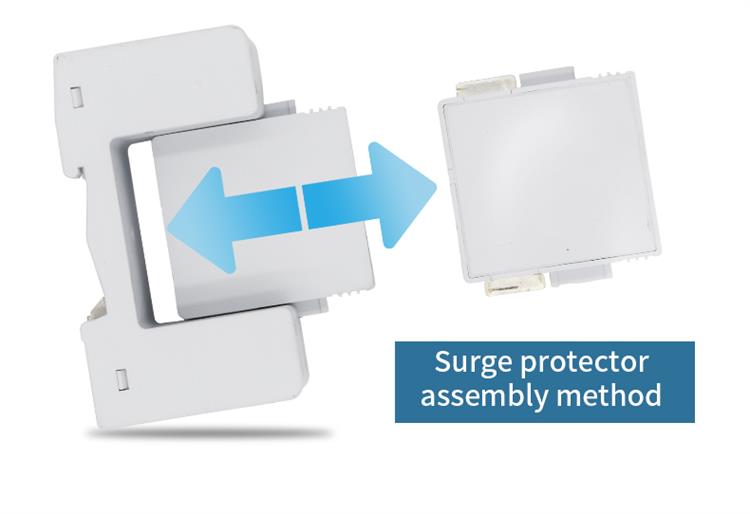

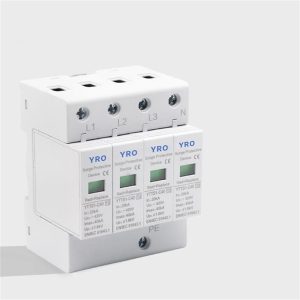

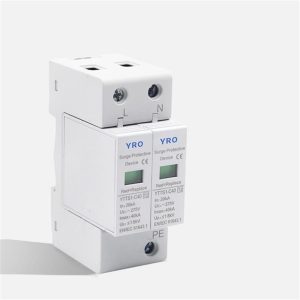

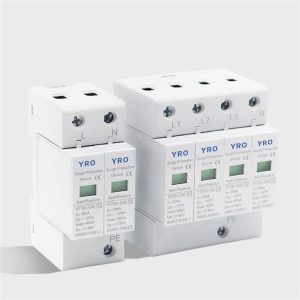

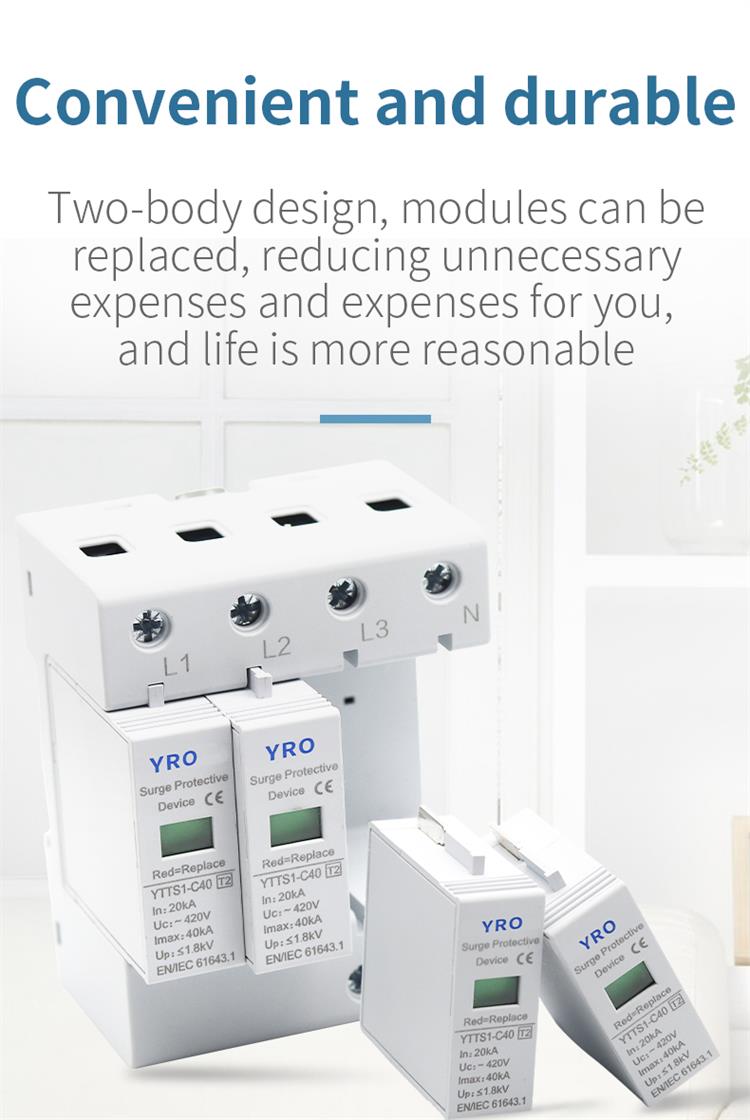

YTTS1-C40 series surge protection device is suitable for TT, it, TN-C-S power supply systems with AC frequency of 50 Hz / 60 Hz, 380 V and below. It can be used as equipotential connection during lightning stroke. Its design conforms to the technical standards of GB 18802.1-2002 and iec61643-1:1998. The shell is designed to be installed on 35mm electrical guide rail. The product has built-in failure separation device. When the power supply protection fails due to over-current, overheating and breakdown, the failure separation device will occur At the same time, the visual alarm indication module can be replaced under the condition of working voltage.

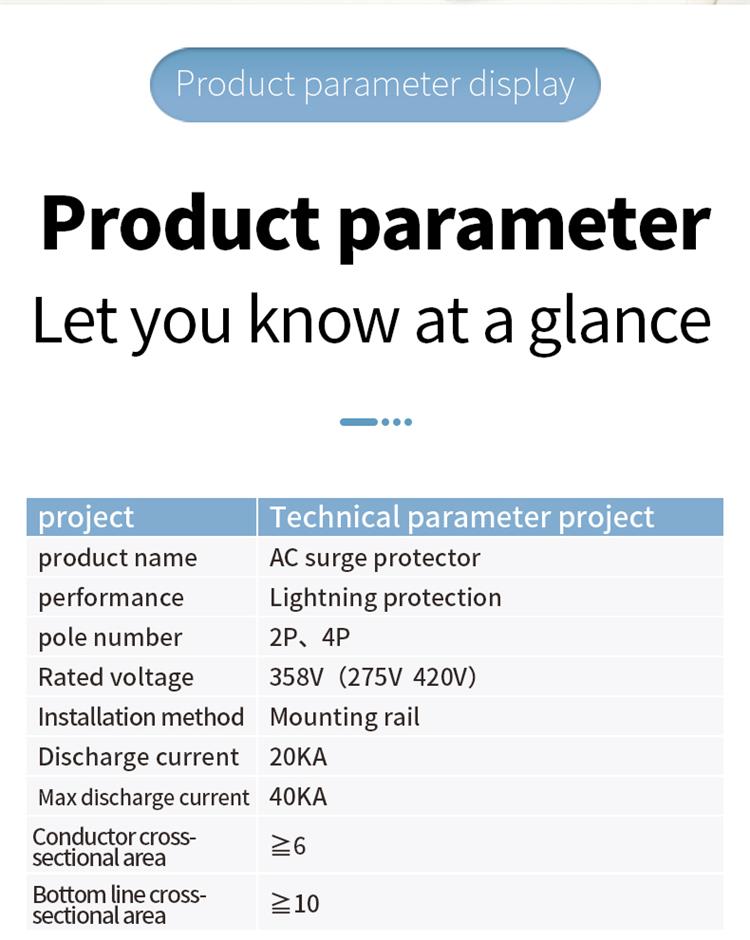

Product Specification



Rated Voltage(max. continous voltage)

Uc

275V~

Nominal discharge current(8/20μs)

In

20kA
Max. discharge current(10/350μs) Imax 40kA
voltage protection level Up ≤1.8kV
Response time tA ≤25ns(L-N)
Max.Back up fuse   125AgL/gG
Operating Temperature range Tu -40~80℃
Cross-sectional area   1.5mm²~25mm² solid/35mm²flexible
Mounting on   35 DIN rail
Enclosure material   Purple module & light gray,UL94-V0

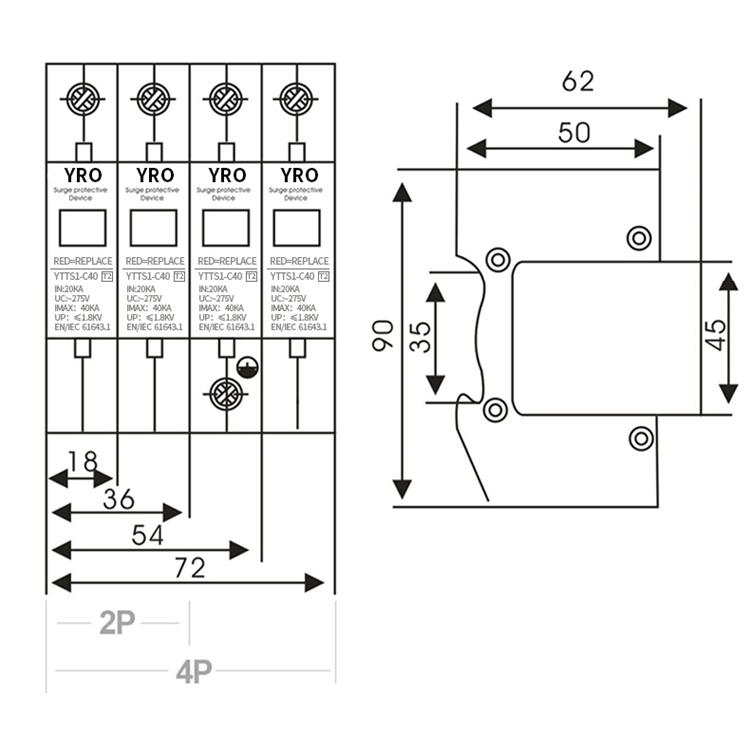

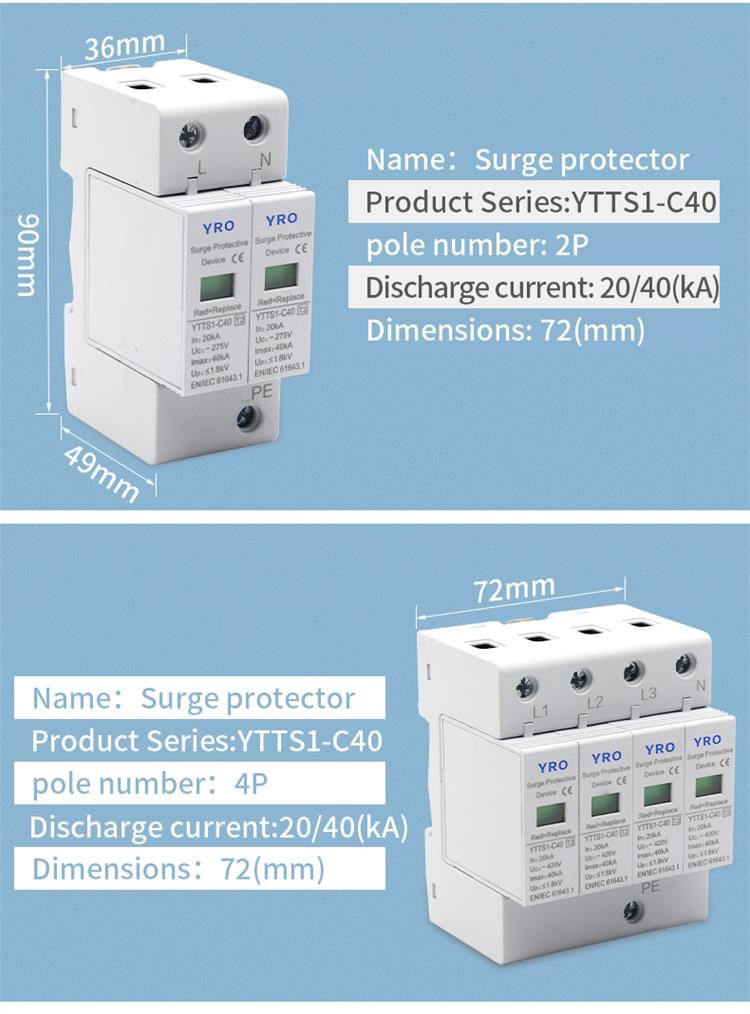

Dimension   4mods
Type of remote signaling capacity   Switching contact
Switching Capacity   AC:250V/0.5A; DC:250V/0.1A; 125V/0.2A; 75V/0.5A
Cross sectional area for temote signaling contact   Max.1.5mm² solid/flexible
Test standards   GB 18802.1; IEC 61643-1





Product Features



1. The SPD is installed at the front end of the protected line (equipment) and connected to the power supply line.

2. Class B and C products are mostly installed in floor distribution boxes

3. It is safe, reliable and easy to maintain

4. The lightning protection unit {each phase} of the product adopts matrix multi chip combined circuit structure



63. When the melt is burnt out under short circuit, the sound is very loud, the melting part is big, and there is burning phenomenon in the melting tube. According to the cause of fusing, find out the fault point and remove it.

64. When changing the melt, the specification of melt should be suitable for the nature of load and line current.

65.When replacing the melt, the power must be cut off for replacement to prevent electric shock.

66. Our experts have rich experience in various fields, so we have to provide a wide range of professional solutions for customers in various industries to win competitive advantages for customers.

YUEQING YRO ELECTRIC CO.,LTD is a professional manufacturer of lightning protection products. Since its establishment for ten years, the company has been promoting the development of lightning protection technology in line with the principle of "seeking development with science and technology and creating brand with quality". The company is specialized in the R & D, manufacturing and sales of lightning protection devices and surge protective devices. It has domestic advanced production, test and detection equipment. The lightning test can pass the detection of 200kA (8 / 20 μ s) and 50kA (10 / 350 μ s).



FAQ

Q1: Why is the surge light on?

A1: The surge light means that the surge protector is functioning and ready to protect. If this light goes out you know you have experienced a surge and the surge protector will no longer protect. The ground light means the surge protector is connected to a proper ground.

Q2: Do appliances need surge protectors?

A2: However, surge protectors are a good idea if you have an off-grid power system or use a generator. These are much more prone to sudden surges, so surge protectors are needed, especially with appliances that are more sensitive to surges, such as computers and medical equipment like CPAP machines.

Q3: How do I protect my fridge from power surges?

A3: The Appliance Surge Protector CSP100R offers vital surge protection for refrigerators and freezers. It prevents spikes in energy caused by storms and electrical power surges from reaching your equipment. The CSP100R provides 900 joules of protection, a surge-protected outlet and a wall tap plug.

Q4: What can a power surge damage?

A4: When a significant power surge occurs, and the electrical pressure exceeds 169 volts, it can cause the connected device and/or wiring to overheat. While smaller surges won't cause the connected components to overheat, the excessive strain caused on the device can, over time, cause it to wear out prematurely.

Q5: Why is half my house without power?

A5: Circuit panel. Look for a breaker that is either off, or partially off, then push it all the way off, then back on. Ah, so, in most cases, if some, but not all, of your houses/apartments power is out, you have most likely tripped a breaker. ... If should reset the part of the house without power.
