what is a solar optimizer?

Publish Time: Author: Site Editor Visit: 60

When it comes to solar optimizers, it can be confusing for those who are not in the field. What is a solar optimizer? This article will provide you with knowledge about solar optimizers.



What is a solar optimizer?

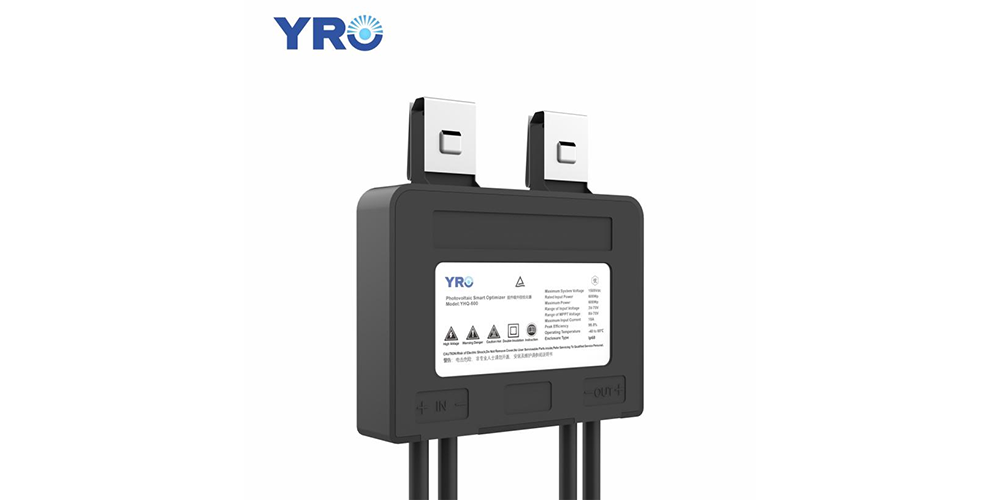

A solar optimizer, also known as a solar power optimizer, is a key device specifically designed to improve the efficiency and performance of solar panels. Its core principle lies in the independent maximum power point tracking and voltage and current optimization of each solar panel to ensure that the solar power generation system can achieve maximum power generation under various lighting conditions.

See here, there may be a lot of people feel confused, next a simple example to illustrate the role of solar optimizer.



What does a solar power optimizer do?

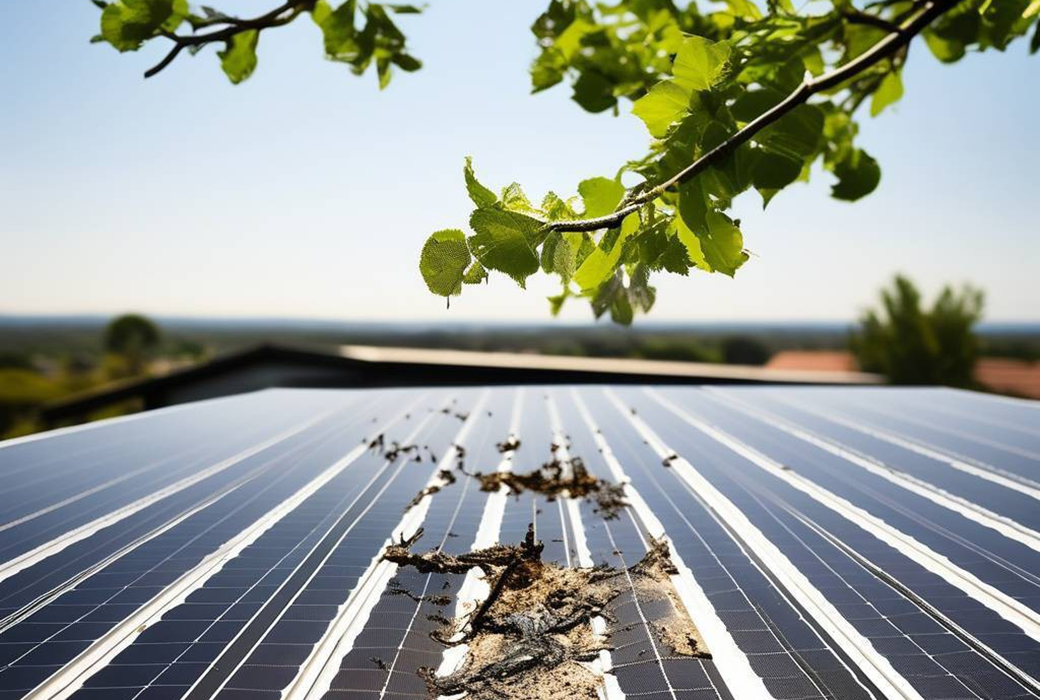

Suppose you have a solar power system on the roof of your house consisting of multiple solar panels that are installed at different locations and angles on the roof. Not every solar panel receives the same intensity of sunlight due to shadows from trees, buildings or other obstructions, or because of the effects of dust and dirt. The unshaded or uncontaminated solar panels continue to generate current, while the shaded or contaminated ones do not, which in the long run can lead to localized overheating of the shaded or contaminated solar panels, a phenomenon also known as the hot-spot effect, which damages the solar panels and shortens their lifespan.

After installing the solar optimizer, its function is as follows:

1. Reduce power loss

Adjust the working condition of the shaded/polluted solar panels to reduce their output power loss and ensure that they do not have a negative impact on the whole system.

2. Improve system monitoring and management

Solar optimizers often have monitoring features that report performance data for each panel in real time. This data helps to identify and solve performance problems and improve system maintenance efficiency

13 maximum power point tracking (MPPT)

Due to changes in light intensity, temperature and other environmental factors, the output voltage and current of solar panels will also change. The solar optimizer automatically adjusts the working point of each solar panel by detecting its output characteristics in real time, so that it always stays near the maximum power point, thus improving the energy output of the whole system.

4. Cooperation with inverter

In photovoltaic power plants, solar optimizers are usually used in conjunction with inverters. The inverter is responsible for converting the DC power generated by the panels into AC power for grid-connected use. The optimizer, on the other hand, provides a stable input to the inverter by precisely controlling the output voltage and current of each panel to ensure the efficient operation of the inverter. At the same time, the communication protocol and data sharing mechanism between the two makes the monitoring and management of the entire power plant more convenient and efficient.

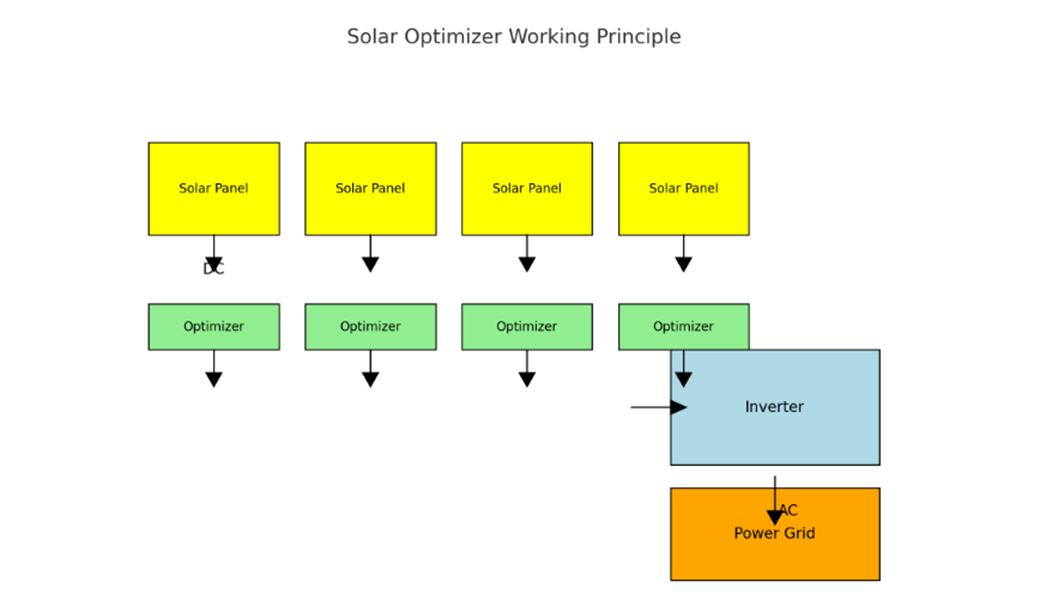

How do solar optimizers work?

The solar optimizer is mainly composed of key components such as DC/DC conversion circuit, microprocessor control chip and power sensor. The DC/DC converter circuit is responsible for converting and optimizing the DC energy collected from the solar panels; the microprocessor control chip is responsible for controlling and regulating the various components of the system to ensure the stable operation of the entire system; and the power sensor monitors the current and voltage in real time in order to carry out the regulation operation that is conducive to the optimization of the system performance. In addition, the solar optimizer utilizes the previously mentioned Maximum Power Point Tracking (MPPT) technology to make independent maximum power point adjustments for each solar panel.

In conclusion, the solar optimizer is able to significantly improve the power generation efficiency and performance of the solar power generation system by means of maximum power point tracking, voltage and current optimization, and other technical means. At the same time, its cooperation with the inverter and remote monitoring and control functions make the operation and management of the power generation system more convenient and efficient. With the continuous development of solar energy technology, solar optimizer will play an increasingly important role in the future of photovoltaic power plant.
