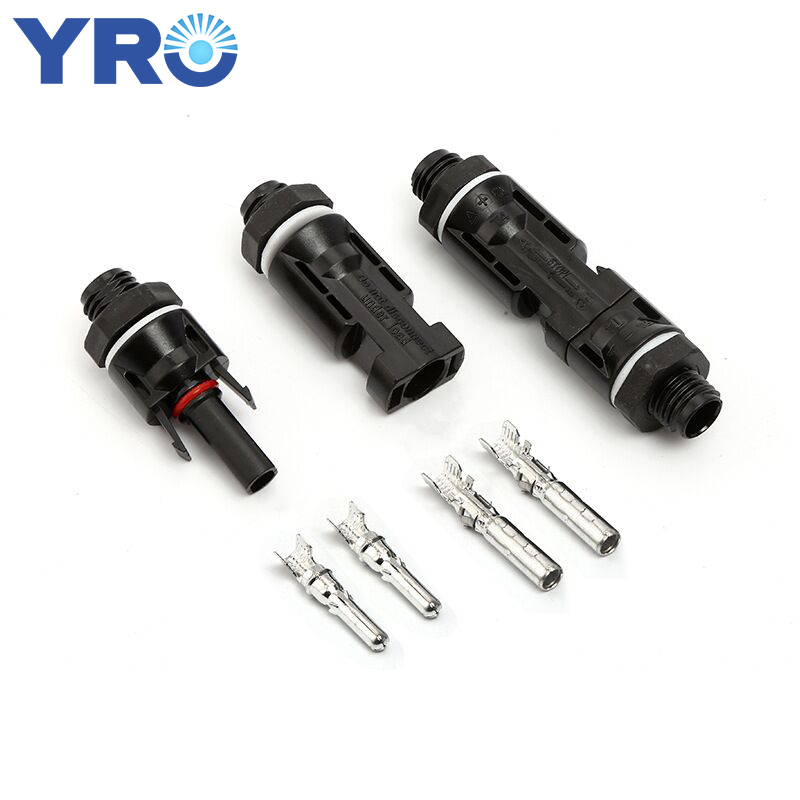

Solar Connector 1000V Panel Connector
Introduce Simple on-site processing. Accommodates PV cable with different insulation diameters. Mating safety provided by keyed housings. Multiple plugging and unplugging cycles. High current carrying capacity. Technical Data OrderNO. P/N Part P/N Cable special Connector Terminal Conductor size(mm²) CableOD((j)Dmm) YSC-1 K-2.5 YSC-CMMM-H YSC-CM-T14 AWG14(2.5 mm²) 4)45-4)8.5 YSC-1 K-4 YSC-1 K-6 YSC-CM-T12 […]

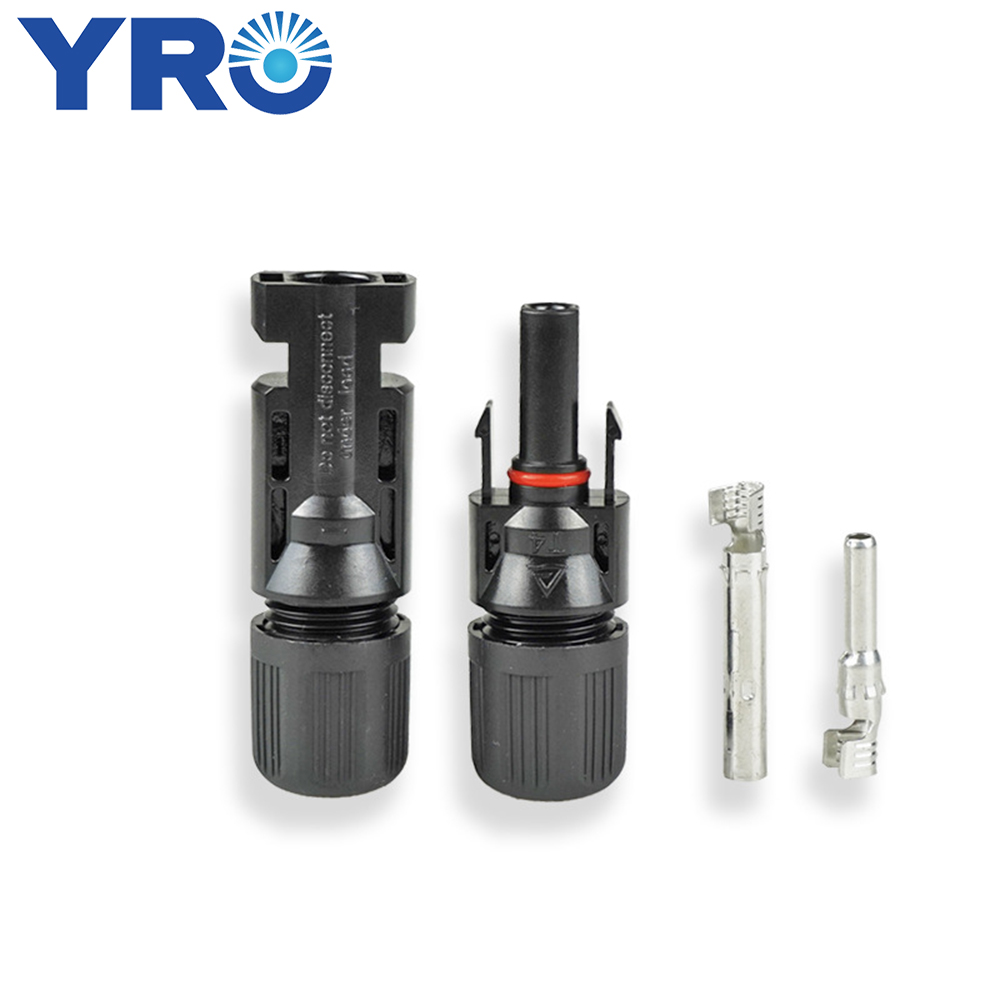

Photovoltaic Cable Connector 1000V Cable Connector
Introduce Simple on-site processing. Accommodates PV cable with different insulation diameters. Mating safety provided by keyed housings. Multiple plugging and unplugging cycles. High current carrying capacity. Technical Data OrderNO. P/N Part P/N Cable special Connector Terminal Conductor size(mm²) CableOD((j)Dmm) YSC-1 K-2.5 YSC-CMMM-H YSC-CM-T14 AWG14(2.5 mm²) 4)45-4)8.5 YSC-1 K-4 YSC-1 K-6 YSC-CM-T12 […]

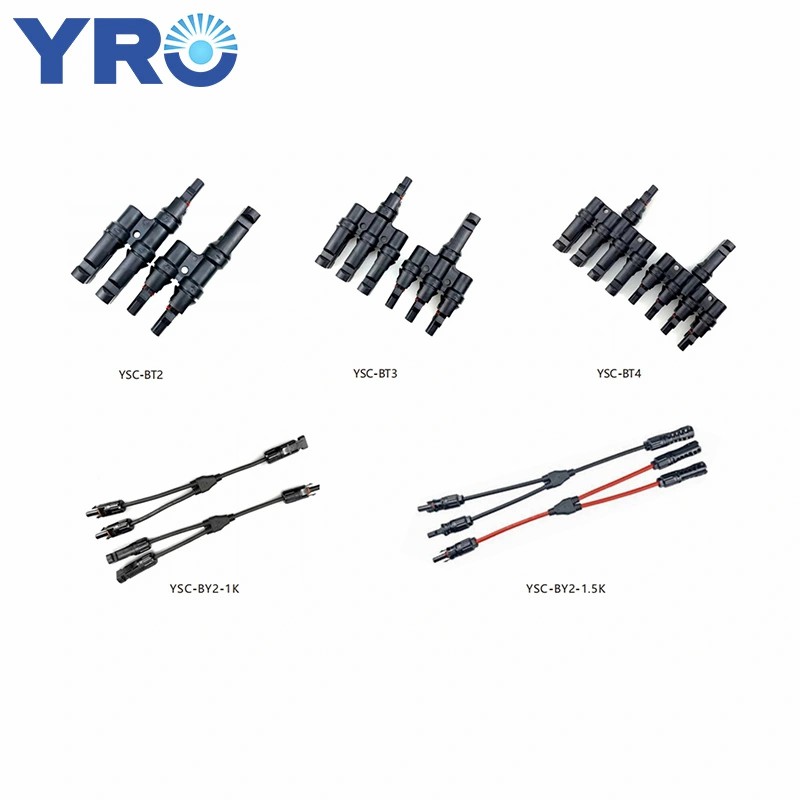

Solar Splice Connector Adapter Cable YSC-BT/BY
Introduce Technical Data Type And Meaning Available Branch Type 2-1,3-1,4-1, 5-1 Rated Current 30A Rated Voltage 1000V DC|1500V DC test Voltage 6000V(50Hz, 1min) Overvoltage type/Pollution Degree 2 CAT III/2 Contact Resistance Of Plug Connector ImΩ Contact Material Copper, Tin-plated Insulation Material PPO Degree Of Protection UL94-VO Flame Class IP2*/IP67 Safety Class II Insertion Force […]
It Is Mainly Applied At Office Building, Residence, For Lighting , Power Distribution And Overload And Short
China Wenzhou C45N Ac 20A MCB
MCB 1P 2P 3P 4P C60 480v Rail Miniature Circuit Breaker MCB
Miniature Circuit Breaker Switch
It is suitable for low voltage terminal distribution system with AC 50 Hz and rated voltage of 230V / 400V; main functions: short circuit protection, overload protection, control and isolation. General model, widely used, high flame retardant, high temperature resistant material passed ROHS certification, green environmental protection Product Specification Product Model Rated Current(A) Pole Rated […]
Leakage Circuit Breaker 63A 30mA B Type YRCB-63LB
Specification: Model YRL7-63LB Electrical Features Mode Electromagnetic Type B Rated current In 6,8,10,13,16,20,25,32,40A,50A,63A,100A Poles 1P+N/2P/3P+N/4P Rated voltage Ue 230/240V/400/415V~ Insulation voltage Ui 500V Rated frequency 50/60HZ Rated residual operating current(n) 30,100,300mA Break time under ≤0.1s Rated breaking capacity 6,000A Energy limiting class 3 Rated impulse withstand voltage(1.5/50) Uimp 4,000V Dielectric test voltage at ind. […]
