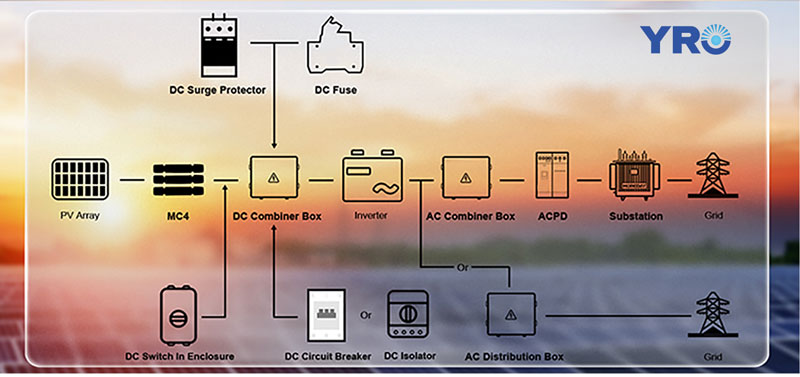

PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter and optimize the system structure. Make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.

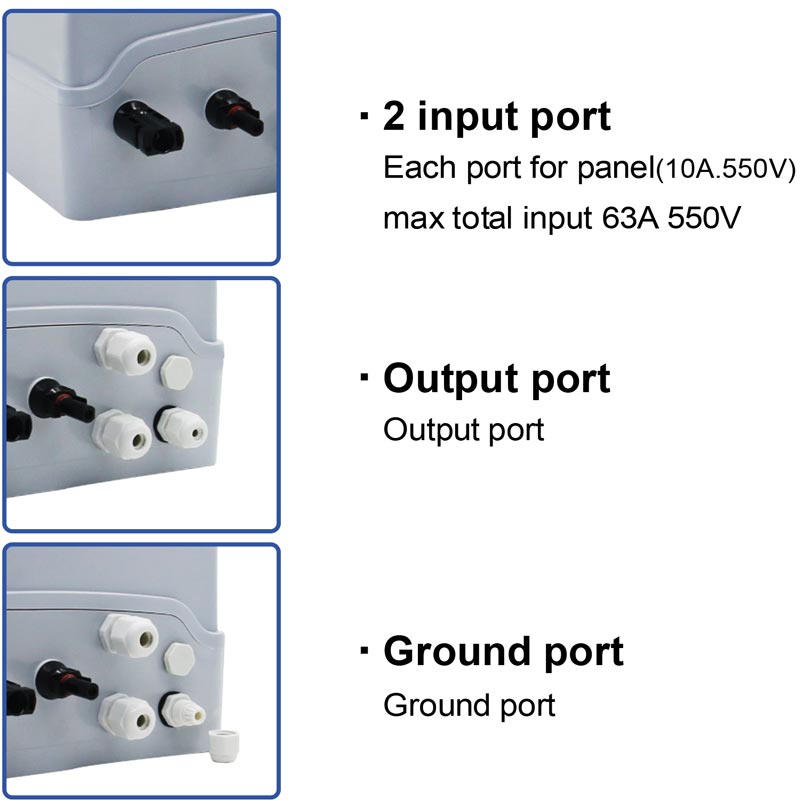

2in 2out DC550V | ||

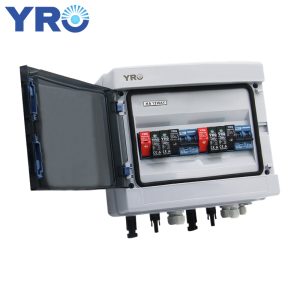

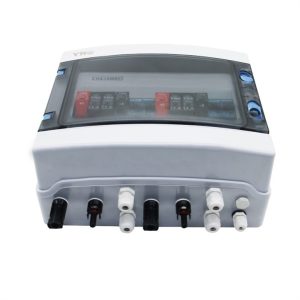

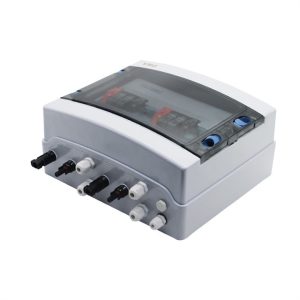

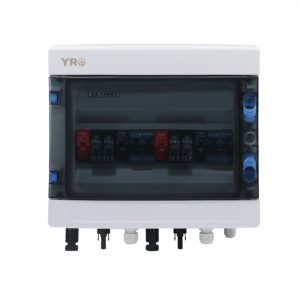

PV Combiner Box | ||

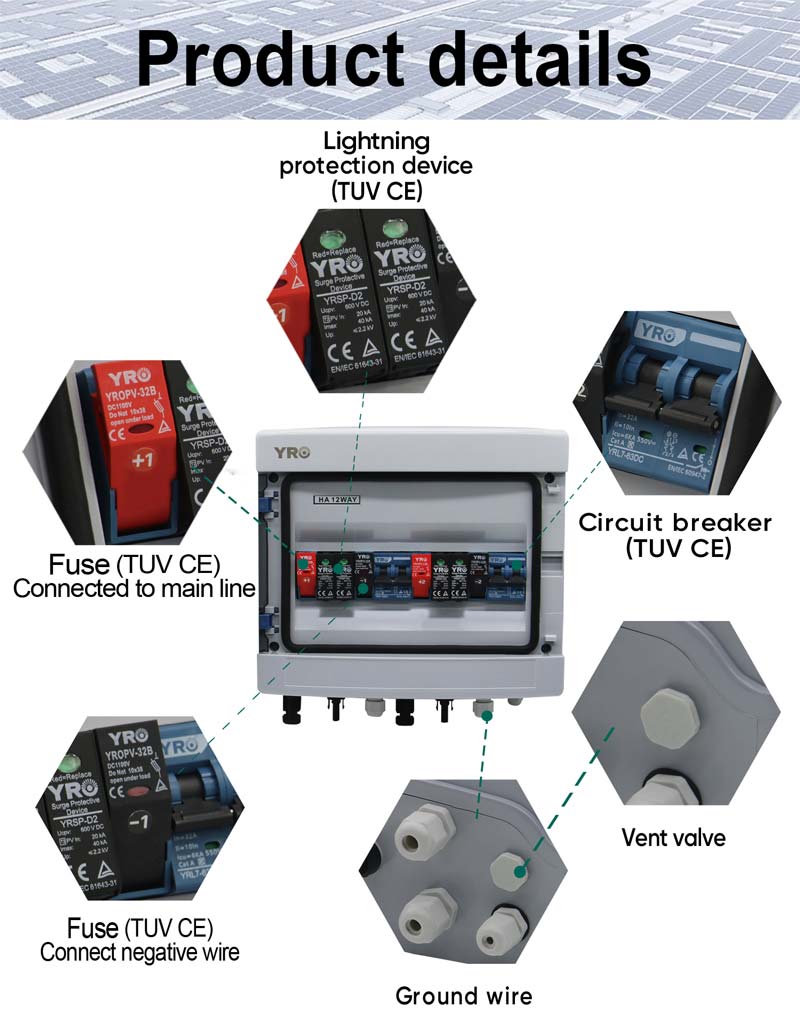

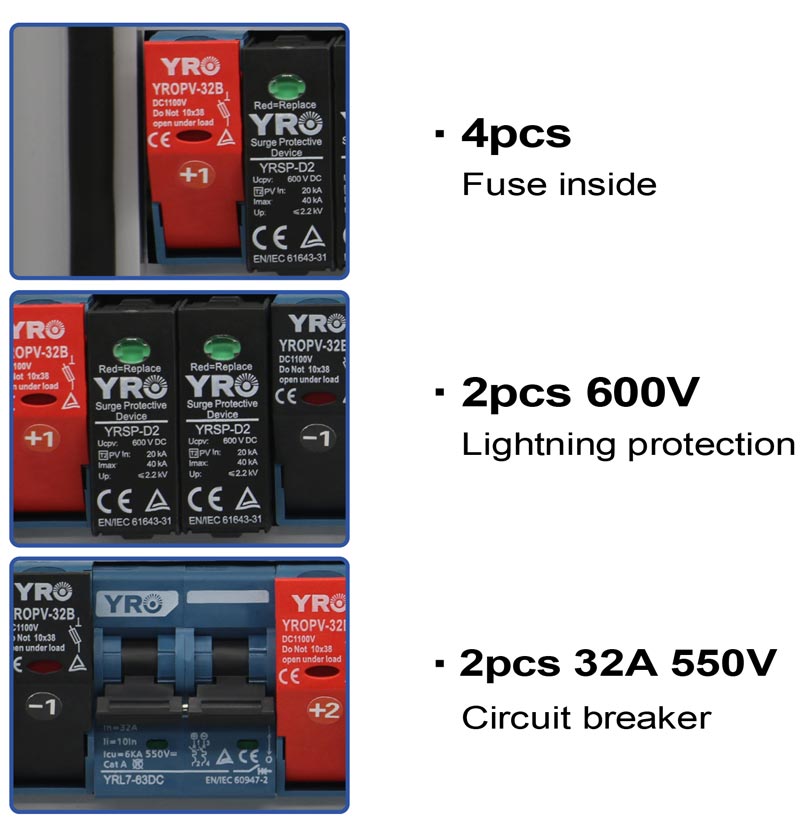

PC+ABS shell is flame retardant and UV resistant | 1000Vdc 15A fuse x4 | |

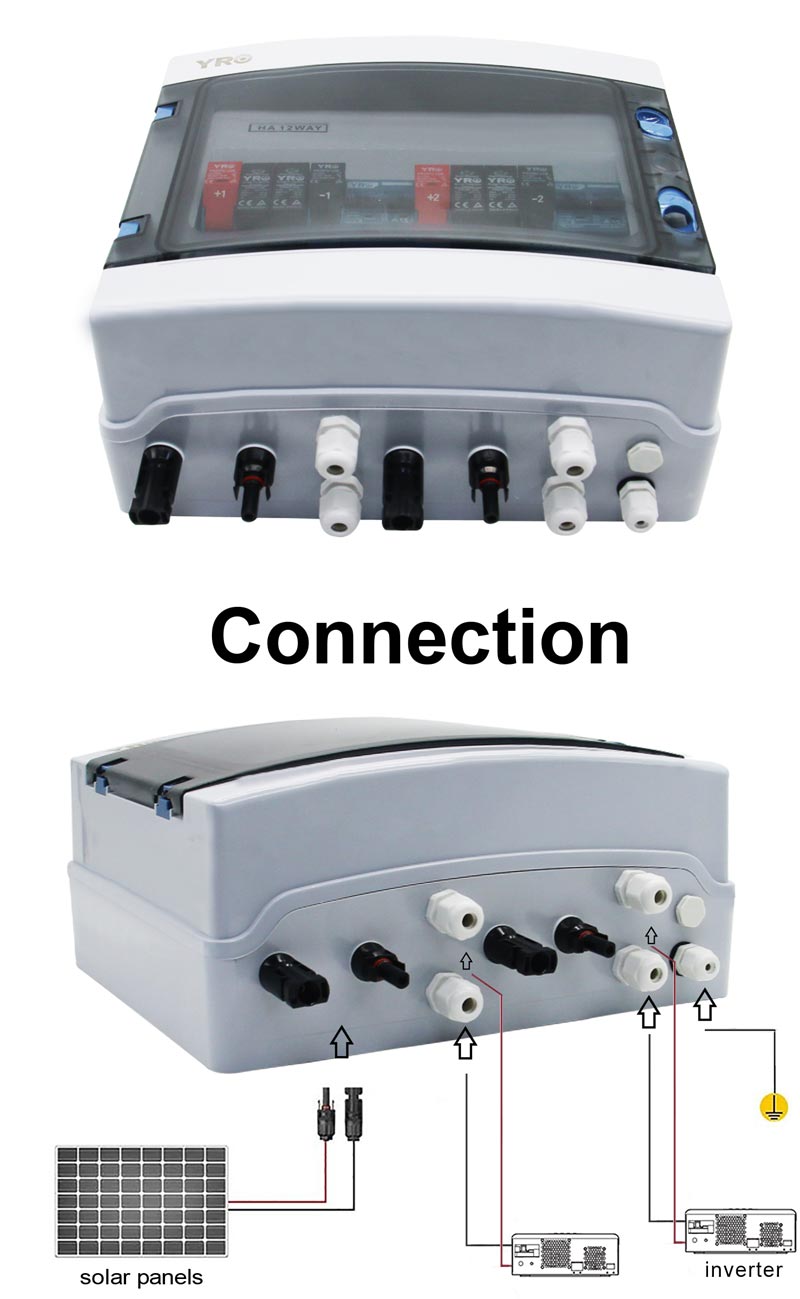

2 in 1 out | 550Vdc 32A circuit Breaker x2 | |
Ip65 12way box | 600Vdc 40kA surge protector x2 |
