Ac Circuit Breaker

240v Industrial Circuit Breaker
240v Industrial Circuit Breaker
240v Industrial Circuit Breaker
240v Industrial Circuit Breaker
240v Industrial Circuit Breaker

240v Industrial Circuit Breaker

●Protect circuits from overcurrent.

●Overload protection and short-circuit protection.

●Widely used in solar PV photovoltaic systems.

●Structure, small size and convenient use.

●Passed KEMA, CE, TUV certification.

Product Description

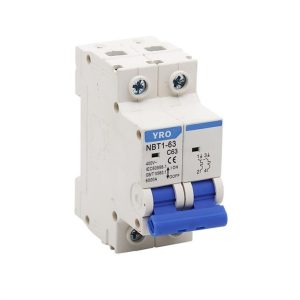

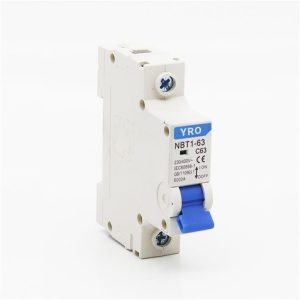

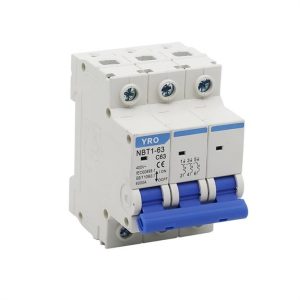

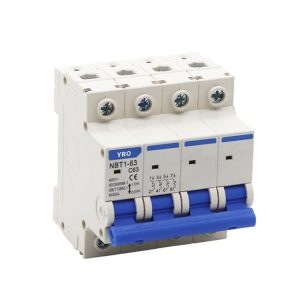

NBT1-63 series miniature circuit breaker is composed of the outer end of the material, the over-current release, the operating mechanism, the contact and the arc extinguishing system. It is suitable for overload and short-circuit protection of circuit, lighting and power equipment in circuits with sub AC 50z or 60Hz rated voltage of 280 / 400W and rated current of 63A and below. It can also be used for circuit failure and infrequent on-off conversion of equipment under normal conditions.

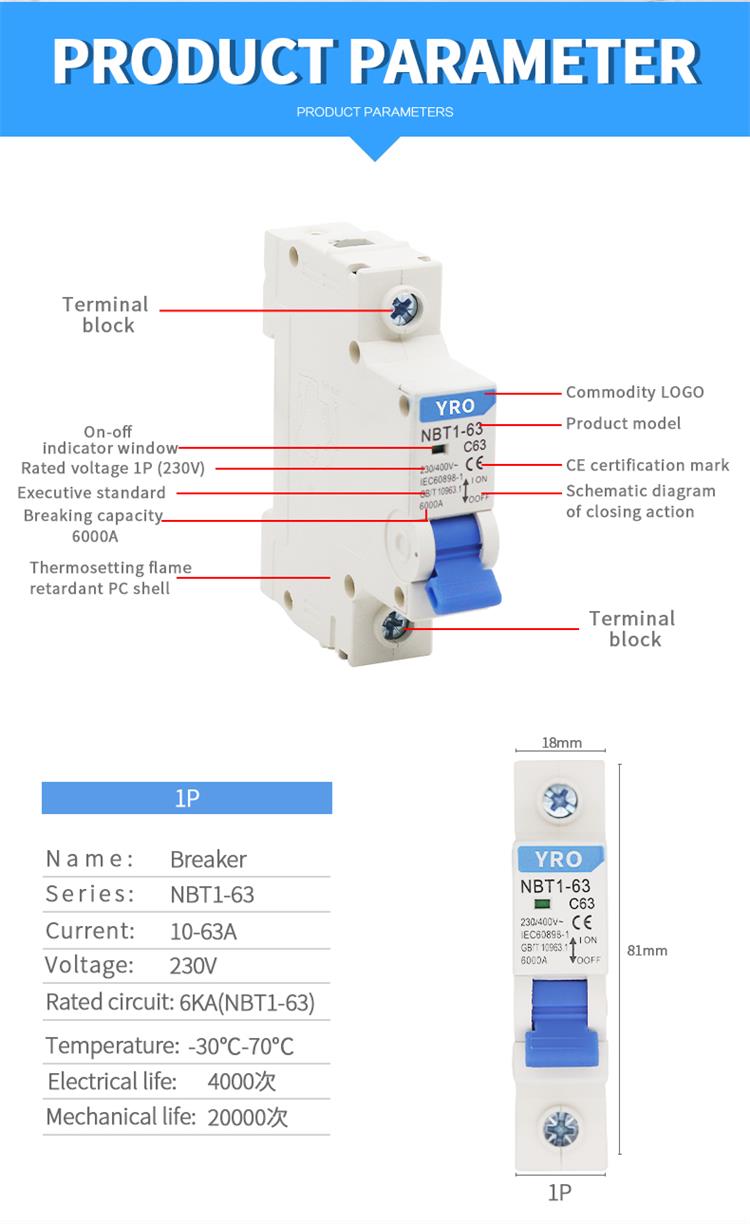

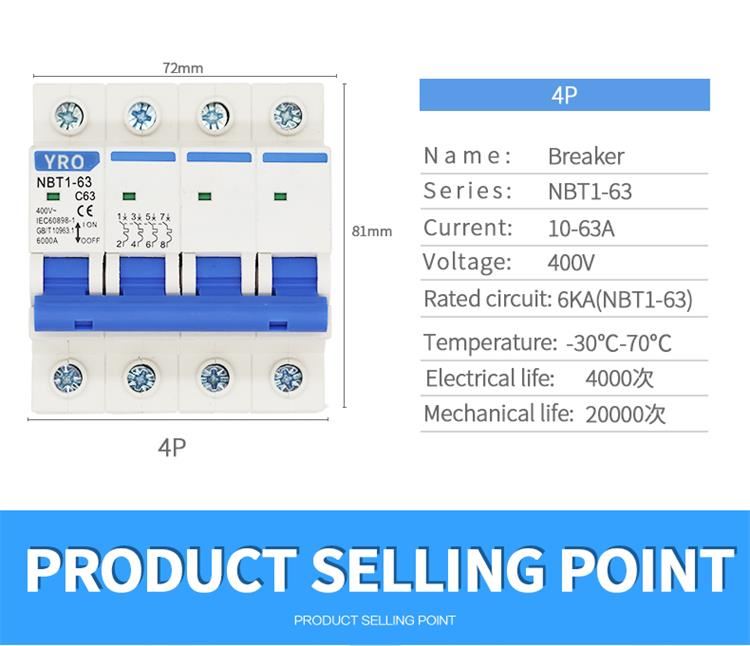

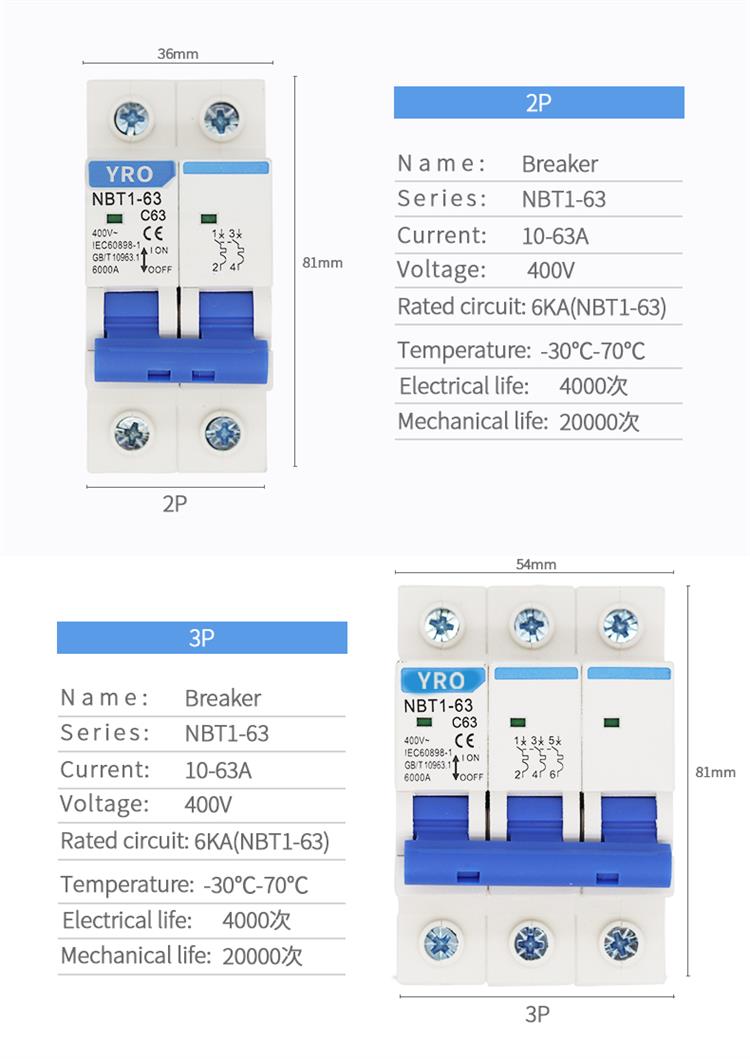

Product Specification



Product Model

Rated Current(A)

Pole

Rated

Voltage(V)

Breaking Capacity

Tripping curve

NBT1-63

1,3,6,10,16,20,25,32,40,50,63

1,2

230/240

6kA

B,C,D

1,2

230/400,240/415

2,3,4

400/415





Product Features



1. Electrical life: 8000 times

2. Type and current range of instantaneous release;

Type B: 3in-5in

Type C: 5in-10in

Type D: 10in-20in

3. Due to the rationality of its structure design, the direction of power supply can be selected arbitrarily. The connection terminal adopts frame type, whether soft or hard conductor

4. With ultra high breaking capacity: 6kA.





After your goods arrive, we will contact with you to ensure the delivery was received, and also to inquire how the products sold or how greeted by end-users.

Your feedback is vital for us to improve. We welcome your customers, both good and bad, and strive to offer alternatives or improvements for you future orders.

YRO’s products& Company have already passed the CE,ROHS till now, and we also have ability t arrange other relevant testing and factory audit as your requirement.

We have a strict standard on raw materials and will proceed more than 6 times inspection during the mass production, including the supervisor and machine inspection. Factory audit could be availability to our customers if necessary.





Over the years, the company has successively provided products and services for electric power, metallurgy, railway, port, petrochemical, power station, construction, mining, machinery and other industries, and has also exported to more than 10 countries and regions such as Brazil, Australia, Eastern Europe, Russia, Pakistan, the Middle East, Southeast Asia and South America.





FAQ



Q1: Can I replace a 15 amp breaker with a 20 amp breaker?

A1: It's possible, but not advisable without an electrician evaluating the situation. You should never just upgrade from a 15-amp breaker to a 20-amp one just because the current one is tripping. Otherwise, you may burn your house down via electrical fire.



Q2: How do I find my main circuit breaker?

A2: Your main circuit breaker is on your electrical service panel box. If you are wondering where it is located in your house, look for the electrical service panel box in your basement or garage. Sometimes they are near your water heater or near the laundry.



Q3: How do I know what type of circuit breaker I have?

A3: Circuit breakers have markings stamped on the side of them and are usually located inside the panel cover door. There is a label that will tell you what type of breaker is needed for installation in that particular panel.



Q4: How do you fix an overloaded breaker?

A4: Solutions to Overloads. The immediate solution to an overload is simple: Shift some plug-in devices from the overloaded circuit to another general-purpose circuit. Then flip the circuit breaker back on or replace the fuse and turn stuff back on.



Q5: What if a circuit breaker will not reset?

A5: If the circuit breaker won't reset and trips immediately, the problem might be a short circuit. A short circuit can cause broken appliances, overheating, or even be a fire hazard. If you suspect a short circuit is the reason your circuit breaker keeps tripping, leave the breaker off and call a licensed electrician.
