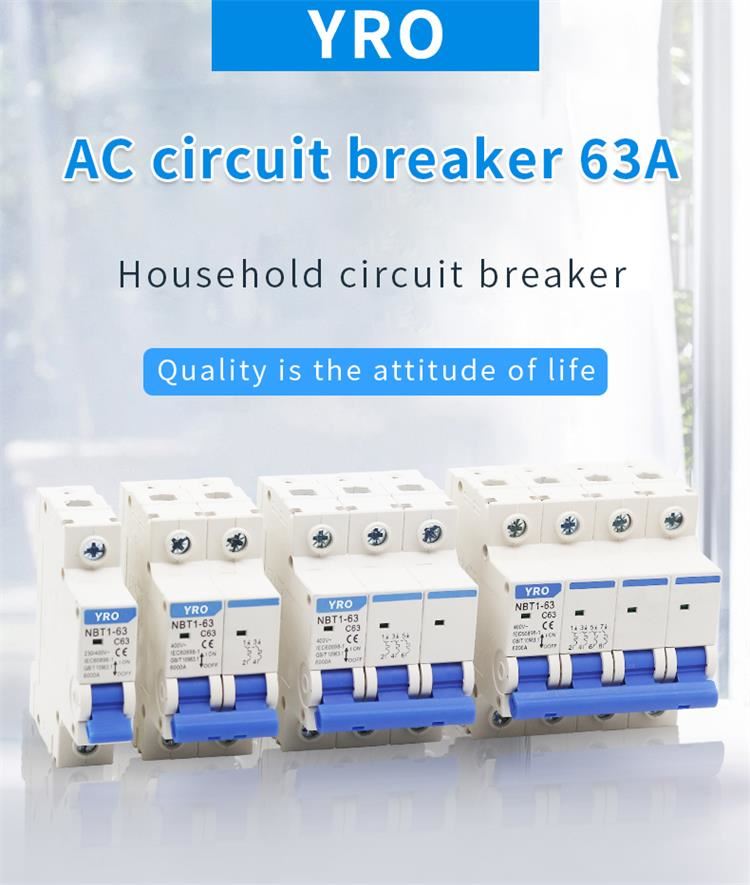

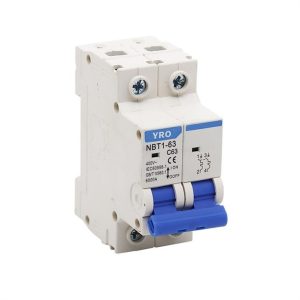

Electrical Mcb Circuit Breaker
●Protect circuits from overcurrent.
●Overload protection and short-circuit protection.
●Widely used in solar PV photovoltaic systems.
●Structure, small size and convenient use.

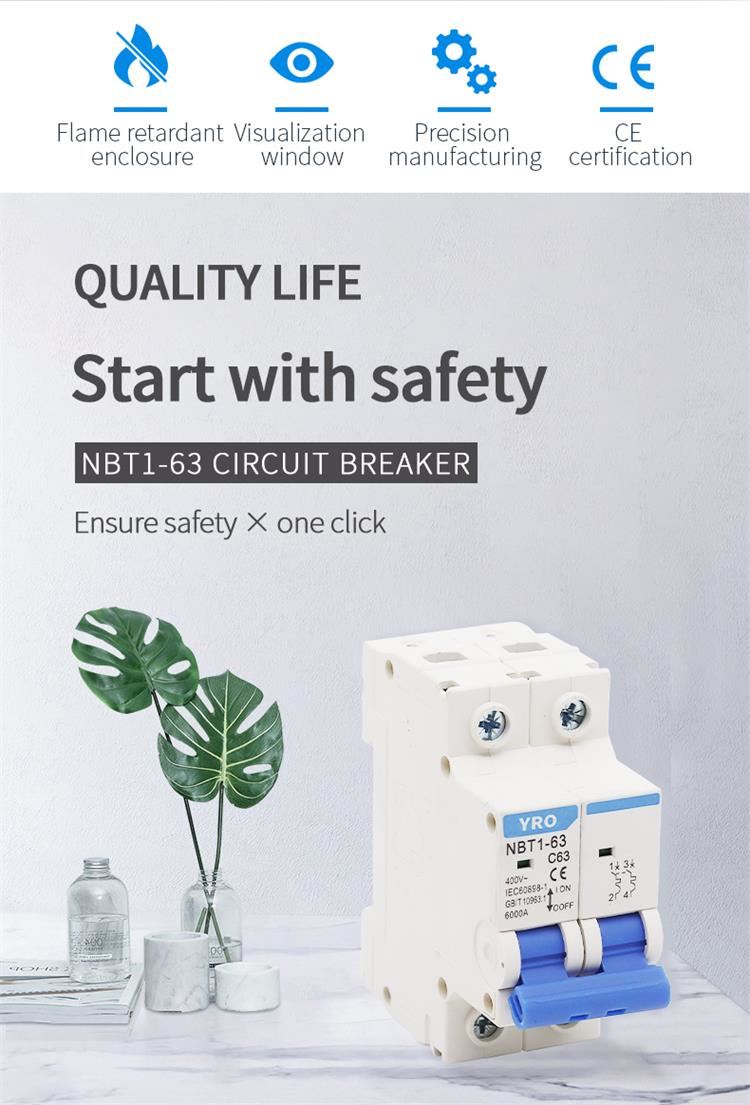

●Passed KEMA, CE, TUV certification.
●Protect circuits from overcurrent.
●Overload protection and short-circuit protection.
●Widely used in solar PV photovoltaic systems.
●Structure, small size and convenient use.
●Passed KEMA, CE, TUV certification.

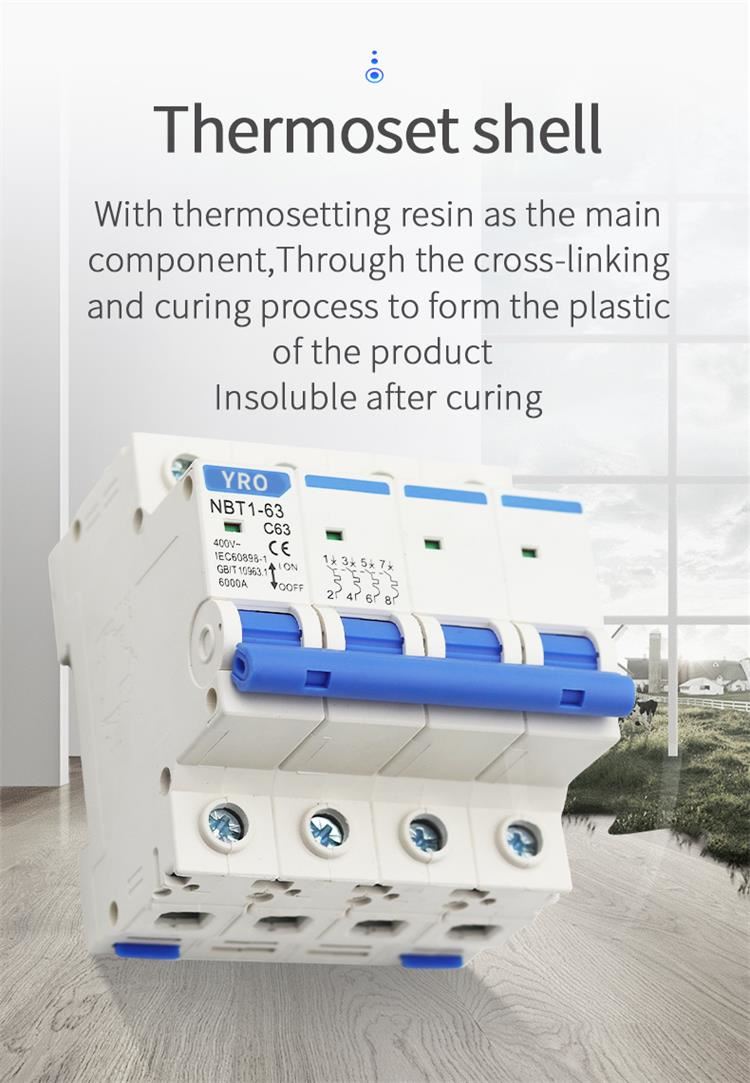

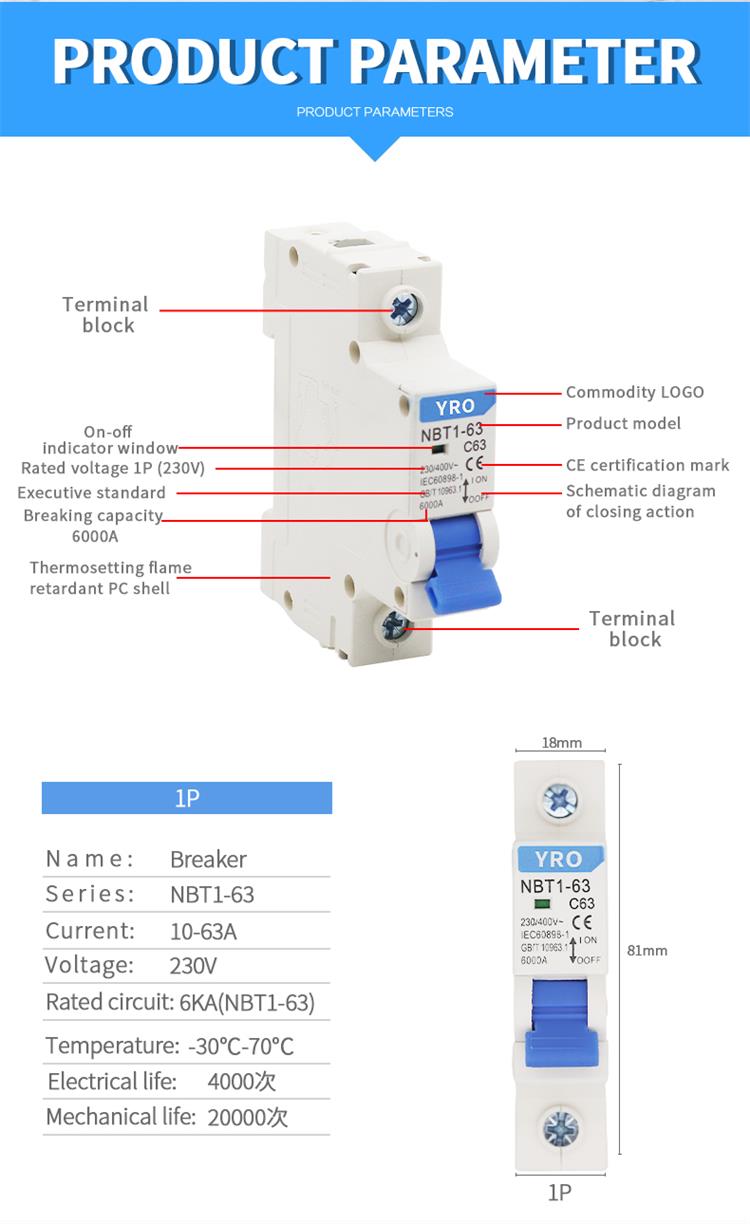

NBT1-63 series small air switch adopts high-precision bimetallic material as time-delay overheat protection element, with accurate protection characteristics; the operating mechanism is a four-bar mechanism, with small operating force, reliable tripping and high sensitivity; the instantaneous tripping electromagnet has fine grading, light weight of moving iron core, small inertia, fast response and high sensitivity. Due to the internal Tibetan structure, there is no jamming phenomenon The reliability of the whole machine is improved; the moving contact is changed from the conventional beam type to the vertical beam type, which increases the rigidity and ensures the closing force of the contact under the hot state. The volume of the moving contact is small and the moving inertia is small, which ensures the moving speed of the moving contact after breaking, which is conducive to the rapid transfer of the arc.
Product Model |
Rated Current(A) |
Pole |
Rated Voltage(V) |
Breaking Capacity |
Tripping curve |

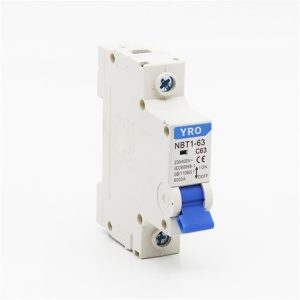

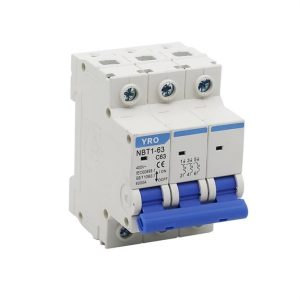

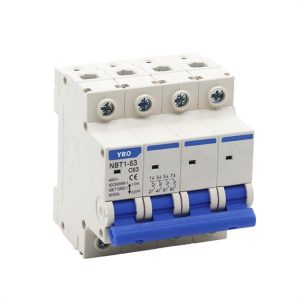

NBT1-63 |
1,3,6,10,16,20,25,32,40,50,63 |
1,2 |
230/240 |
6kA |
B,C,D |

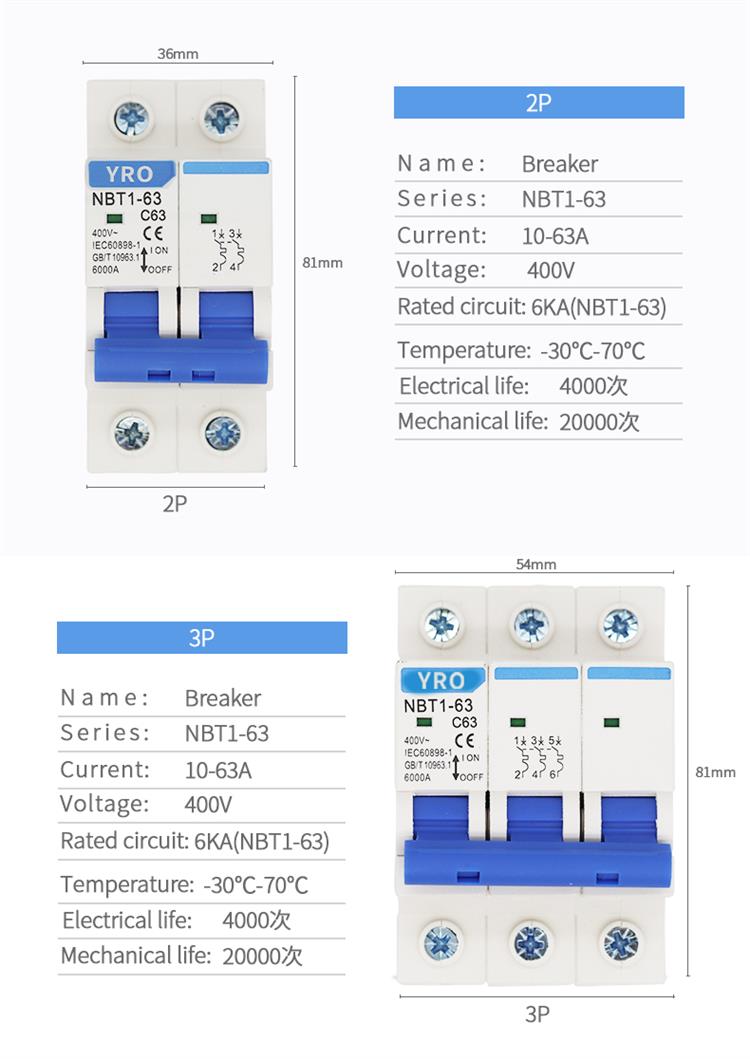

1,2 |
230/400,240/415 |
||||

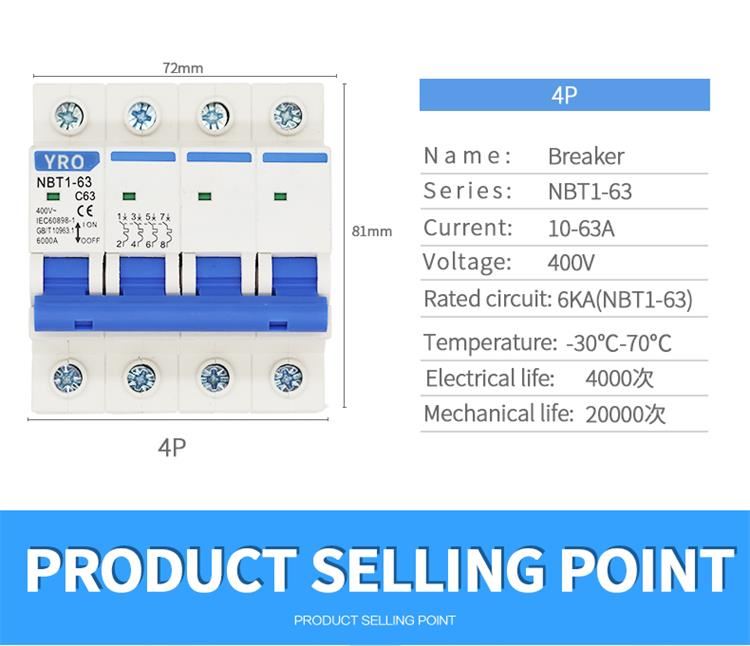

2,3,4 |
400/415 |

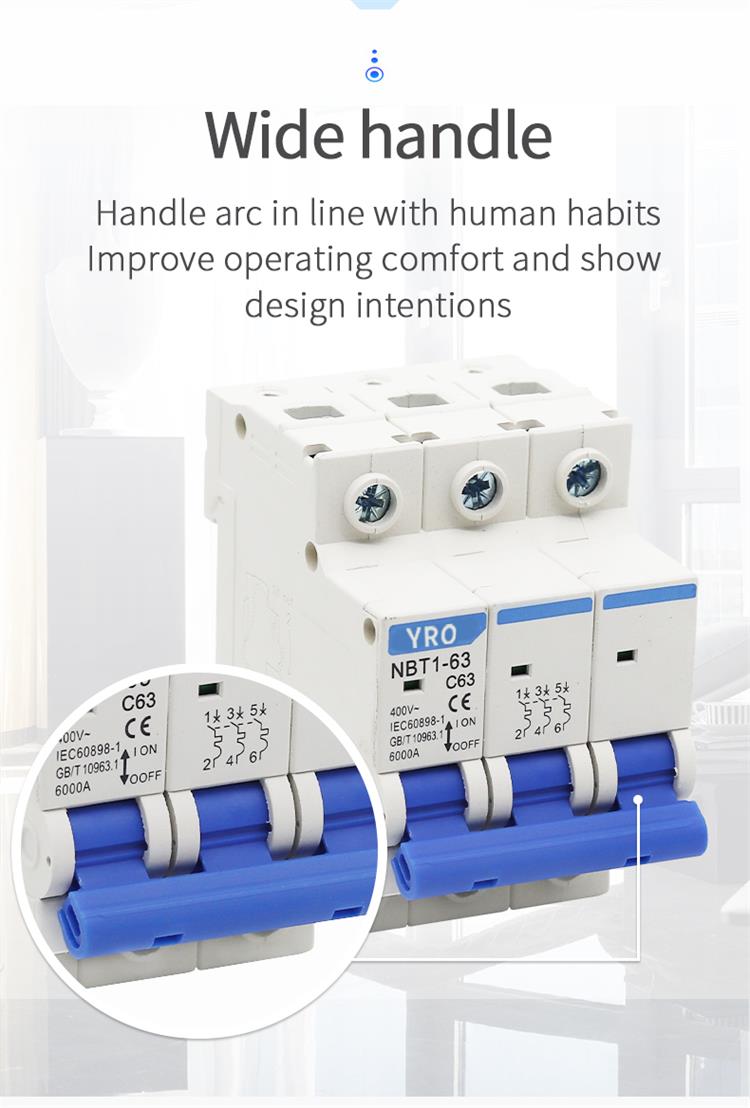

1. The handle is ergonomically designed for more comfortable operation.
2. Square design, compact coordination, good synchronization of product closing.
3. Unique handle design ensures the consistency of opening and closing of multi-stage products
4. The anti-skid design and fillet design of handle and product shell are more comfortable for customers
Streamline the buying and paying processes
Deliver the goods to our customers all over the world with speed and precision
By Express: such as DHL, UPS, TNT, FedEx etc. The dispatch time is about 3-7 days
Air Freight: when your order more than 100kgs which will be more economical than express
YUEQING YRO ELECTRIC CO.,LTD is specialized in the design, development, manufacture, sales and service of small circuit breaker, electric motor driven circuit breaker, plastic shell circuit breaker, leakage circuit breaker, double power automatic transfer switch, intelligent universal circuit breaker, surge protector, automatic over-voltage and under voltage protector, spring-up ground socket and other products. The products are widely used in power distribution system of key projects such as industry, construction, electric power, communication and aviation.
Q1: How do I know if my electrical panel is full?
A1: If all the slots in your fuse box contain breakers, you assume it's full. However, take a look at the diagram inside the door. It indicates how many circuits a breaker box can handle. If you see a 20/40 notation, that means your box has 20 spaces for breakers and the capacity to operate with 40 circuits.
Q2: Can I put a 200 amp breaker in a 100 amp panel?
A2: The electrician needs to do a load calclulation and see if the house needs to be upgraded. It may be that you just need a larger panel with more spaces, and not more current. You cannot put a 200 amp main breaker panel on a 100 amp service, unless the service is protected at 100 amps.
Q3: What does a double 100 amp breaker mean?
A3: It depends on what you mean when you say it has double 100 amp breakers. If you mean the breaker has 2 handles that are tied together and both handles say 100 amps then no it is only a 100 amp service. If you see 4 handles tied together then it would most likely be 200 amps.
Q4: How does a 240 volt breaker work?
A4: The way you get a 240-volt circuit is simple. A “double-pole” circuit breaker is clipped into both 120 buses at the same time, so the voltage to the circuit is doubled. That's why 240-volt circuits need two hot wires and a neutral to carry the electricity to the appliance, plus a ground wire.
Q5: What are the standard breaker sizes?
A5: Standard sizes for fuses and fixed trip circuit breakers, per 240.6, are 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 110, 125 amps.
