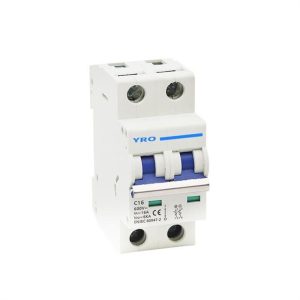

Dp Mini 16a Mcb

Dp Mini 16a Mcb
Dp Mini 16a Mcb
Dp Mini 16a Mcb
Dp Mini 16a Mcb
Dp Mini 16a Mcb

Brand:YRO

Name:Dc Circuit Breaker

FOB Port:Ningbo/Shanghai/Yiwu/Guangzhou/Shenzhen

Terms of Payment:T/T

Update:09/23/2020

Product Description

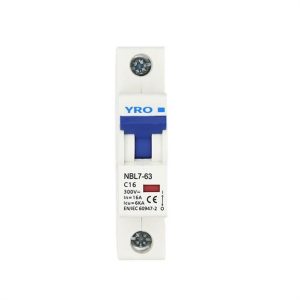

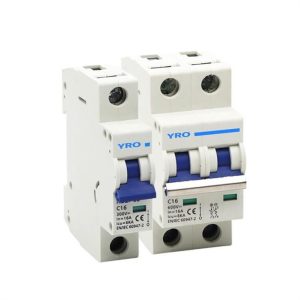

CE approval solar application pv mcb breaker box Electrical DC MCB





NBL7-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.





Products features



1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic





Technical data



PV Series Circuit Breaker

YRL7-63

Frame degree rated current (A)

63

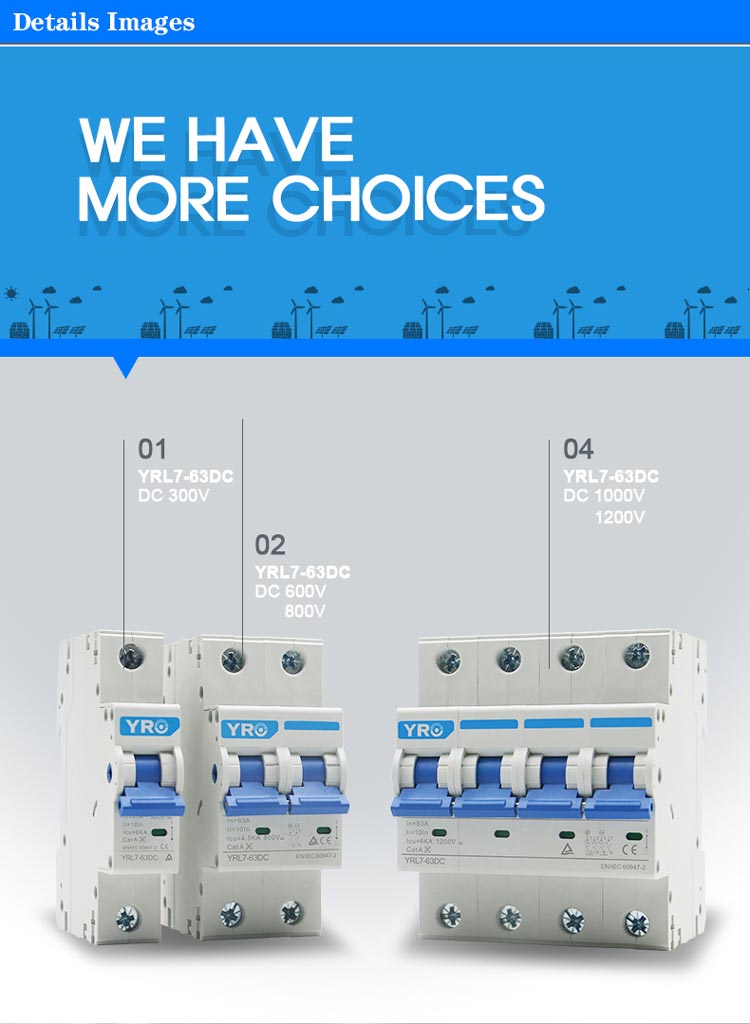

Ue Rated operating voltage (V DC)

DC 550V

DC 800V

DC 1000V

DC 1200V

Rated Current In (A)

1,3,6,10,16,20,25,32,40,50,63

Rated insulation voltage Ui (V DC)

2P: 800V 4P:1200V

Rated Impact voltage Uimp (kV)

4

Ultimate breaking capacity lcu (kA)

6

6

6

6

Run breaking capacity lcs (%lcu)

75%

75%

75%

75%

Curve type

C

Trip type

Thermal-magnetic

MECHANICAL

20000/8500

ELECTRIC

2500/1500

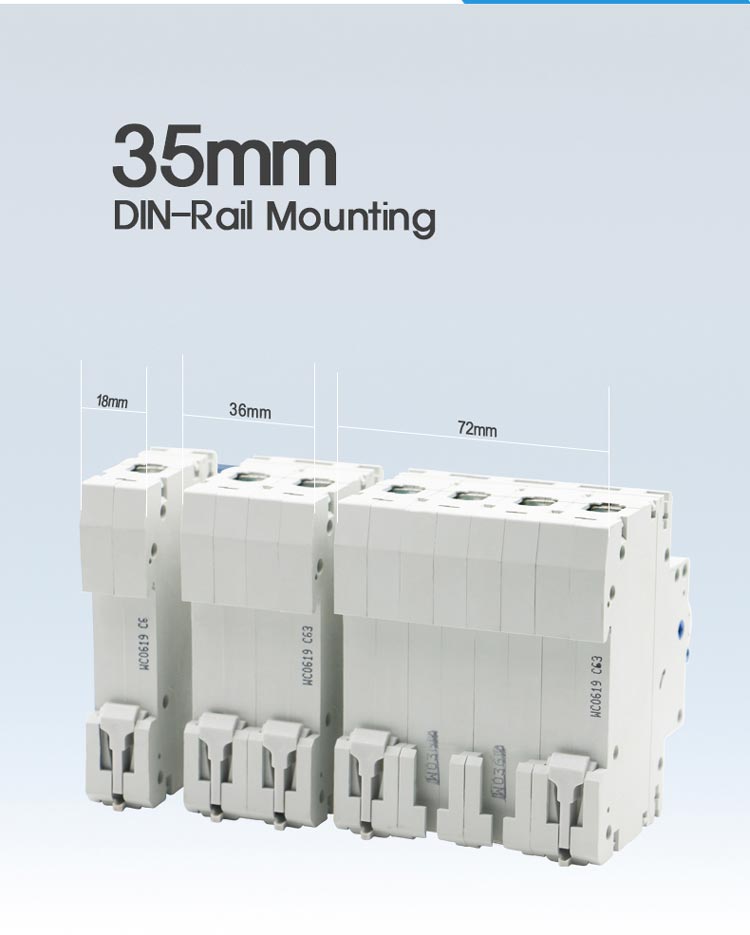

Installation

DIN Standard rail

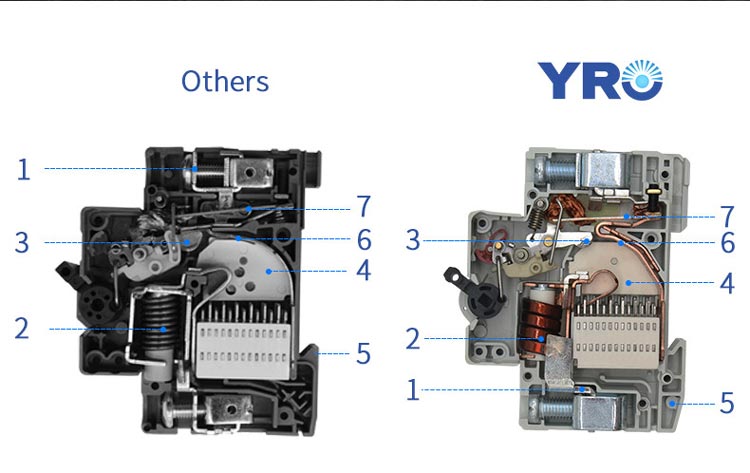

1.YRO:2mm thickness copper terminal.
Other:1mm thickness copper terminal.

2.YRO:Class A Magnetic trip cpil.
Other:Class B/C Magnetic teip coil

3.YRO:2mm thickness copper silver plated moving contact with silver fixed contact.
Other:1mm thickness copper moving cout with copper fixed contact.

4.YRO:Non-polarized Increase the disconnect0 distance to 7mm without magnet.
Other:Polar DC circuit breaker with permanent magnet.

5.YRO:V-0 flame retardant with PA66 material.
Other:V-2flame retardant with PC material

6.YRO:1mm thickness arc ignition system.
Other:0.7mm thickness arc ignition system.

7.YRO:1mm thickness bi-matel(thermal teip).
Other:0.7mm thickness bi-matel(thermal trip)







Company Information







Packaging & Shipping





Packaging Details



standard export box package
NBL7-63 1P 120 pcs packed into one carton
NBL7-63 2P 60 pcs packed into one carton
NBL7-63 3P 40 pcs packed into one carton
NBL7-63 4P 30 pcs packed into one carton
Carton Size 47*23.5*18CM3
G.W./N.W.: 15/14.5kgs
