Specification

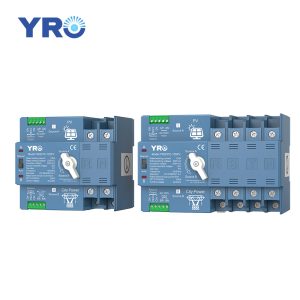

Model | YRQ1PC-125 | |||
Poles | 2,3,4 | |||
Rated Current Ie (A) | 10A~125A | |||
Installation | Din rail | |||
Rated insulation voltage Ui (V) | AC690, 50/60HZ | |||
Rated working voltage Ue (V) | AC400, 50/60HZ | |||
Rated impulse withstand voltage (KV) | 8KV | |||
Connecting and breaking | 6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times | |||
Operating performance | 2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times | |||
Rated limited short-circuit current Iq | 50KA | |||
SCPD (FUSES ) | RT16-00-63A | |||
Control circuit | Rated supply voltage Us: AC220V, 50HZ. | |||
Ancillary circuit | Two isolated relays, each relay with 2 groups of passive | |||
Switching time | <50ms | |||
Action time | <50ms |
