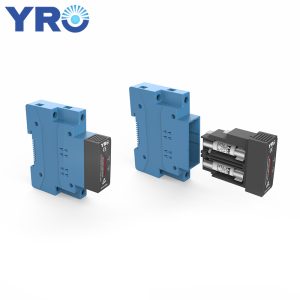

DC Fuse Photovoltaic YROPV-32HBD

Application:

YRO YROPV-32HBD is a 1500V DC fuse holder with 2 poles input combines and 2 pole output, holding 2 pieces of 10*85mm or 14*85mm 1500V fuse link up to 63A. The fuse holder can be application in 1500V solar combiner box, solar inverter and solar equipments.Protect the DC circuit from over-current damaging

Use category:

gPV means all range DC breaking protection in solar photovoltaic power generation system .

Structure:

This series of products is a variable cross-section melt made of 1# (99.99) pure silver tape (or silver wire wound), welded with environmentally friendly low-temperature tin and encapsulated in a melt tube made of high-strength 95 porcelain. The melt tube The medium is filled with high-purity quartz sand that has been chemically treated and treated with a special process as an arc extinguisher The two ends of the medium and the melt are firmly electrically connected with the contacts by spot welding. The fuse base is made of a plastic pressed shell equipped with contacts and fuse-carrying parts, or connected by riveting, and can be used as a supporting part for fuse-links of corresponding sizes. This series of fuses have small size, convenient installation, safe use and app earance features such as beautiful appearance.

Technical Data:

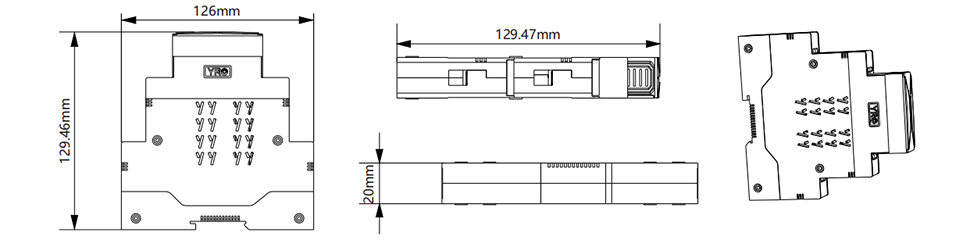

Dimension:
