Do I Need a PV Combiner Box?

Publish Time: Author: Site Editor Visit: 162

In a previous article, we discussed what a PV combiner box is. However, many people wonder if they need one. So, when exactly do you need a PV combiner box?



Ⅰ. Do I Need a PV Combiner Box?

If you only have two or three strings of solar panels, like in a ordinary residential setup, you might not need a combiner box. But when you have more than three strings, a combiner box becomes essential.

Here's why:

1、Safety

- Current Protection: Each string of solar panels generates DC current. When multiple strings are connected in parallel, the total current increases. A combiner box with built-in circuit breakers or fuses provides protection against overloads and short circuits, preventing electrical fires and equipment damage.

- Reverse Current Protection: A combiner box can prevent reverse currents caused by faults in certain strings, safeguarding the system.

2、Ease of Maintenance

- Fault Detection: A combiner box allows for individual monitoring of each string’s current and voltage, making it easier to quickly locate and resolve issues.

- Centralized Management: It helps in managing and monitoring the entire PV system from one location, improving maintenance efficiency.

3、System Efficiency

- Reduced Wiring Complexity: By collecting the currents from multiple strings and sending a unified output to the inverter, a combiner box reduces the number of cables and simplifies wiring.

- Lower Cable Losses: Centralized current collection shortens the cable lengths, reducing electrical losses and improving system efficiency.

4、Expandability

- Modular Design: A combiner box allows for modular expansion of the PV system, making it easier to upgrade and scale.

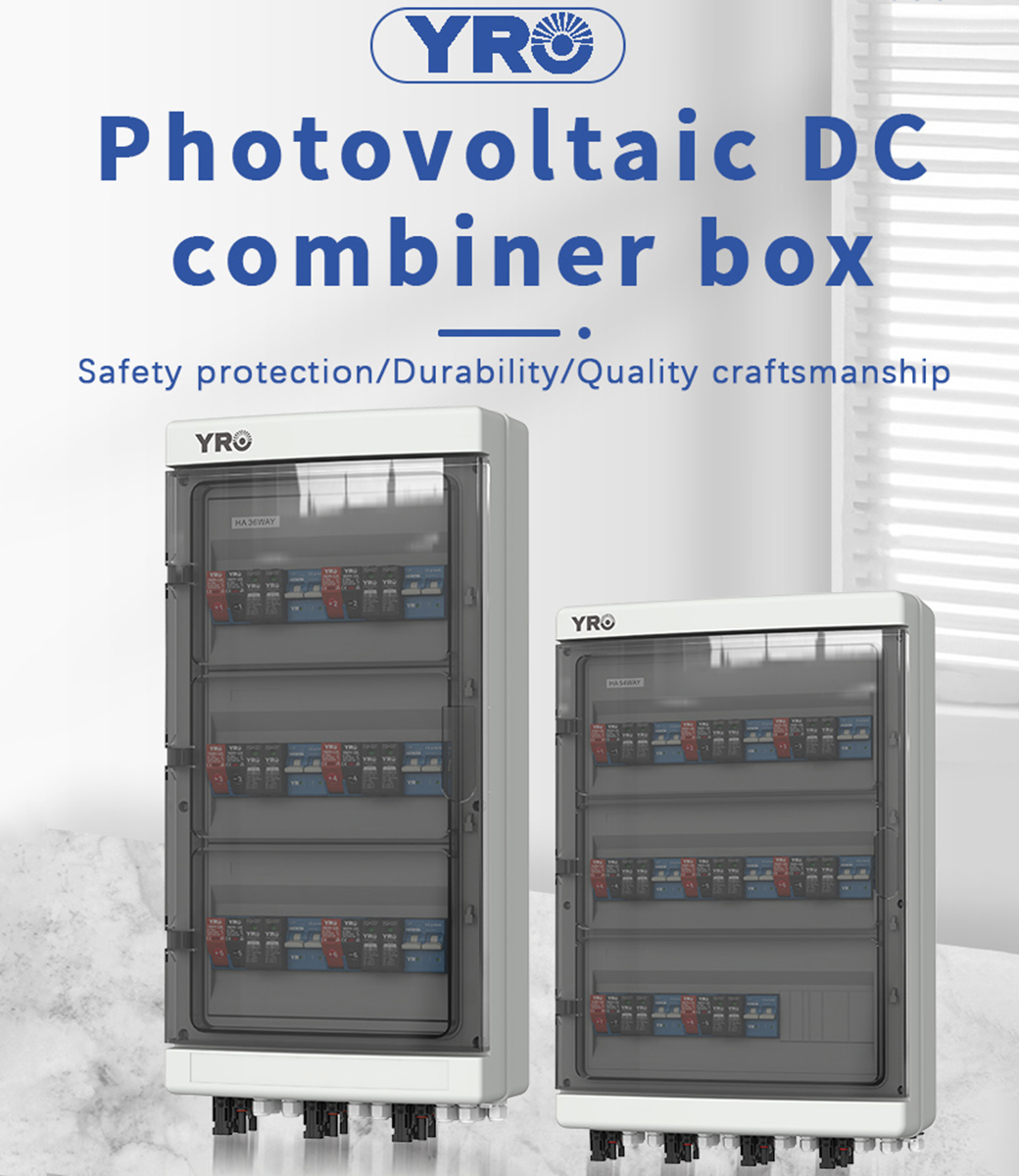

YRO (Yueqing Yirui Electric Co Ltd) Solar Combiner Box: Efficient, Stable, and Secure

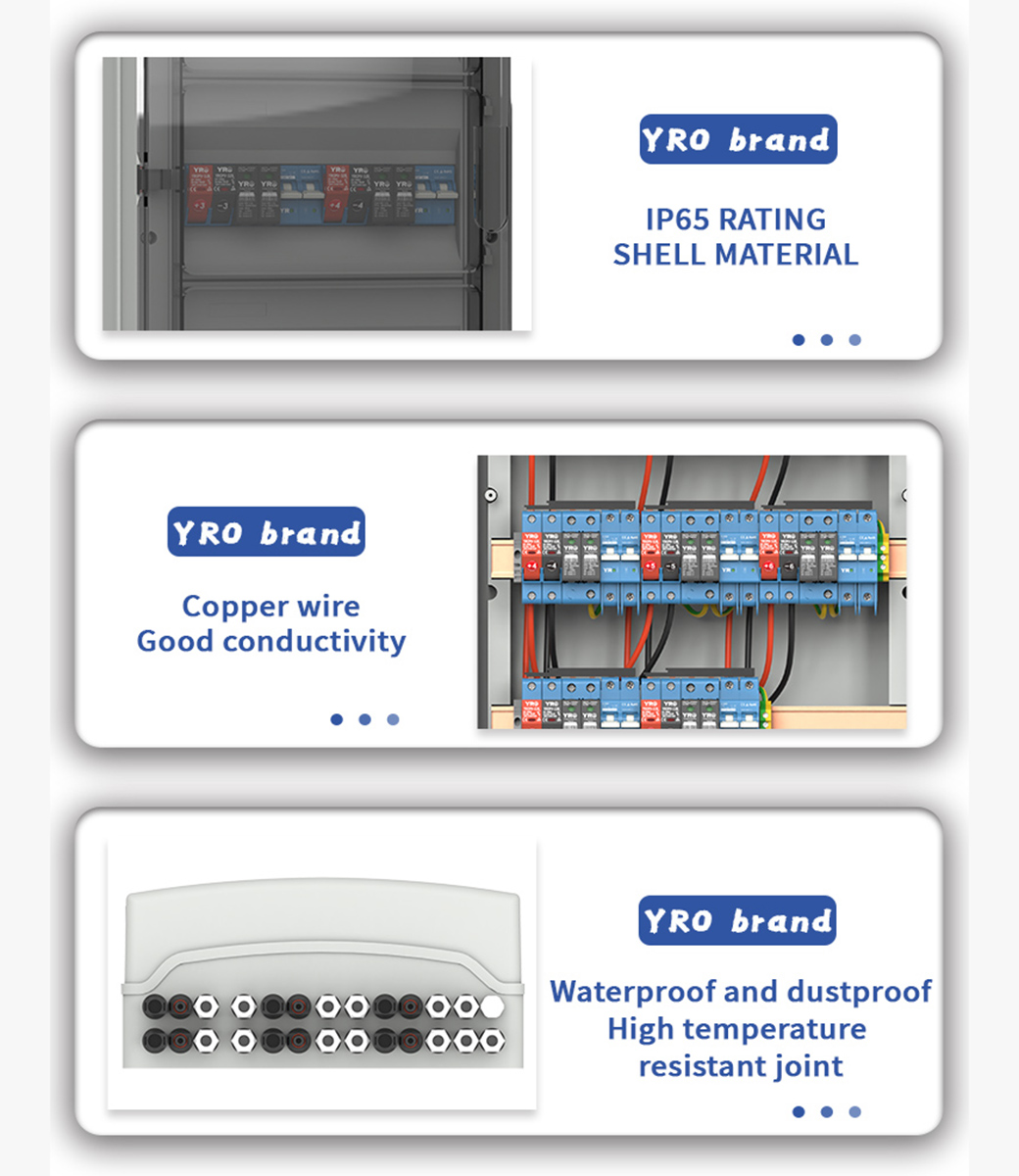

Whether indoors or outdoors, YRO solar combiner boxes offer complete waterproof protection for your PV system. YRO combiner box equipped with advanced surge protectors, they effectively guard against lightning strikes, ensuring safe operation. With high-quality fuses and circuit breakers inside, YRO provides multi-layered protection. Additionally, YRO supports component selection and custom combiner boxes tailored to your needs. Choose YRO for peace of mind, ensuring your PV system operates efficiently and securely with higher energy efficiency and safety.



Ⅱ. Does a Solar Combiner Box Increase the Voltage?

A solar combiner box does not increase the voltage. Its main function is to collect the DC current generated by multiple solar panels and then transmit it to the solar inverter or storage system.

The voltage changes mainly depend on the number of panels in series and the system design. Here are some key points:

- Series Connection: The voltage of each solar panel adds up. For example, if each panel has an output voltage of 30V, ten panels in series will have a total voltage of 300V.

- Parallel Connection: When multiple strings of panels are connected in parallel, the total current increases, but the voltage remains the same as that of a single string.

Therefore, the function of a solar combiner box is to collect current and provide protection, not to increase the system's voltage. Voltage increases or remains constant depending on how the panels are connected (series or parallel).



Ⅲ. How Do I Choose a Solar Combiner Box?

When choosing a solar combiner box, consider the following key factors:

1、System Voltage and Current Capacity

- Voltage Rating: Ensure the combiner box’s voltage rating matches your PV system’s voltage. For example, if your system voltage is 1000V DC, the combiner box should support at least 1000V DC.

- Current Capacity: Select a combiner box based on the maximum current of each PV string and the number of strings in parallel. Ensure it can handle the total current without overloading.

2、Number of Input and Output Ports

- Input Ports: Choose a combiner box with enough input ports to accommodate all PV strings. For instance, if you have 8 PV strings, you need at least 8 input ports.

- Output Ports: Typically, combiner boxes have one output port, but you can choose models with multiple output ports if needed.

3、Protection Devices

- Circuit Breakers or Fuses: Ensure the combiner box has high-quality circuit breakers or fuses for reliable protection against overloads and short circuits.

- Surge Protection: Select a combiner box with surge protection to safeguard the system from lightning strikes.

4、Protection Level

- IP Rating: Choose an appropriate IP rating based on the installation environment. For outdoor installations, a higher IP rating (like IP65 or above) is necessary for water and dust protection.

5、Safety Standards: Ensure the combiner box complies with relevant certifications (like CE, UL, etc.) and meets industry standards and safety requirements.

6、Ease of Installation and Maintenance

- Easy Installation: Choose a combiner box with a simple design for easy installation, saving time and costs.

- Maintenance Convenience: Consider the ease of maintaining the combiner box, such as the ability to replace circuit breakers or fuses easily and clear wiring and operation instructions.

7、Price and Budget

- Cost-Effectiveness: Choose a combiner box that offers good value for money, balancing quality and functionality.

- Long-Term Costs: Consider the long-term operation and maintenance costs of the combiner box, not just the initial purchase price.

8、Brand and After-Sales Service: Choose reputable brands that typically offer better product quality and after-sales service.

Selecting the right solar combiner box is crucial for ensuring the efficient and safe operation of your PV system. If you have any questions or need further assistance, please email us. We look forward to hearing from you.



Related News

> Circuit breakers in photovoltaic technology

DC circuit breaker is a protective device for DC circuits, which has the function of quickly cutting off current and preventing overload and short cir...

> What You Need to Know About PV Combiner Boxes

In electrical and solar power systems, PV combiner boxes and junction boxes are common terms. Each component plays a crucial role in ensuring the effi...

> Do I Need a PV Combiner Box?

In a previous article, we discussed what a PV combiner box is. However, many people wonder if they need one. So, when exactly do you need a PV combine...

Related Products

Firefighter Safety Switch YRSD-5A

Firefighter Safety Switch YRSD-5A

Click to Learn More

Leakage Circuit Breakers YRL7-63LE

Leakage Circuit Breakers YRL7-63LE

Click to Learn More

Voltage Surge Protector Lightning Surge Protection 2 Pole 20KA 40KA AC SPD Surge Protective Device

Voltage Surge Protector Lightning Surge Protection 2 Pole 20KA 40KA AC SPD Surge Protective Device

Click to Learn More

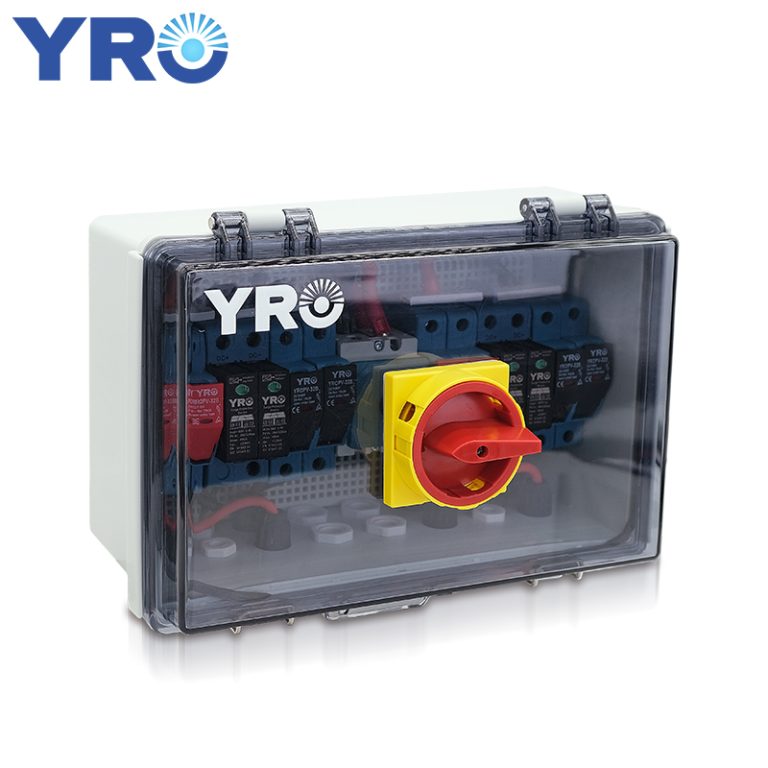

DC Combiner Boxes 2in 1out DC1000V
