Basic Information About Fuse Holder

Publish Time: Author: Site Editor Visit: 143

Application:PV fuse is mainly used in solar photovoltaic combin -er box for the possible production of solar panels. Division of line overload and short circuit current ca -used by inverter and other current feedback of ph -otovoltaic series. The fuse can also be used for oth -er functions. It is used for overload and short circu -it protection of electrical components inDC circuit.

Basic parameters:Rated voltage: DC1000V, rated current up to 1250 A, use type: GPV, can also derive: GG, am, etc., b -reaking capacity up to 50kA. The main guidelines and s tandards for fuse manufacturing are: GB 135 39.1/ec60269-1; GB / t13539.6 /IEC60269-6; UL248-1 & 19 /UI248-4248.

Structural features:The shape of the fuse link is divided into round tube and square tube. The inner part of the fuse is made of silver tape or pure copper strip. It is packaged in high temperature resistant and high strength ceram -ic tube, and filled with enough high silicon quartz s -and as filler to play the role of arc extinguishing me -dium.

Basic data:The model, dimension,rated voltage and current of fuse are shown in the figure / table.

Related News

> Rapid Shutdown in the Context of Solar Power

In the world of solar power, "Rapid Shutdown" is a term of great significance, serving as a safeguard that ensures the swift de-energization of a sola...

> What is the purpose of the combiner box?

The combiner box plays a crucial role in photovoltaic (PV) solar systems, serving the primary purpose of combining the output from multiple solar pane...

> What is a knife blade fuse?

A knife blade fuse is a type of electrical fuse used to protect electrical circuits from overcurrent conditions. It consists of a flat, blade-like met...

Related Products

Firefighter Safety Switch YRSD-5A

Firefighter Safety Switch YRSD-5A

Click to Learn More

Leakage Circuit Breakers YRL7-63LE

Leakage Circuit Breakers YRL7-63LE

Click to Learn More

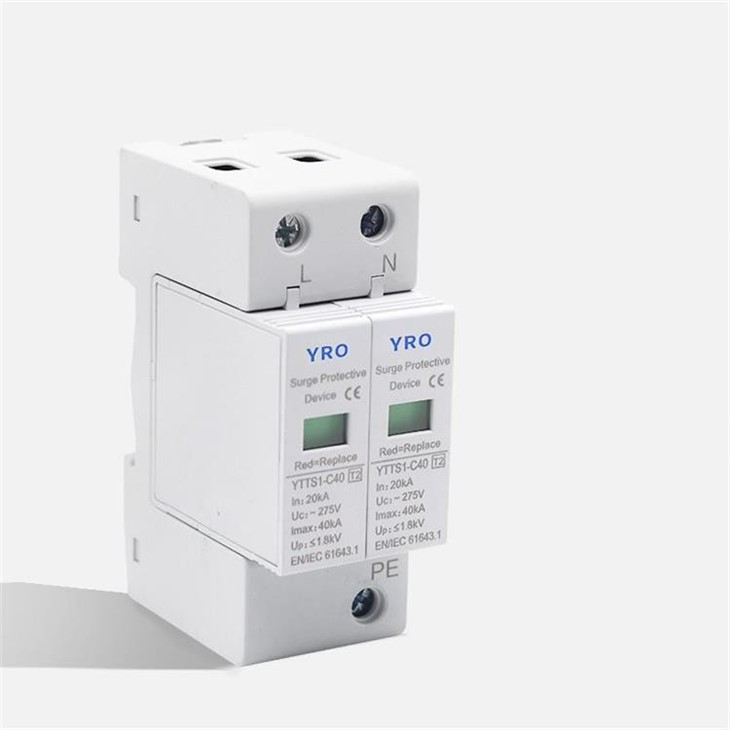

Voltage Surge Protector Lightning Surge Protection 2 Pole 20KA 40KA AC SPD Surge Protective Device
